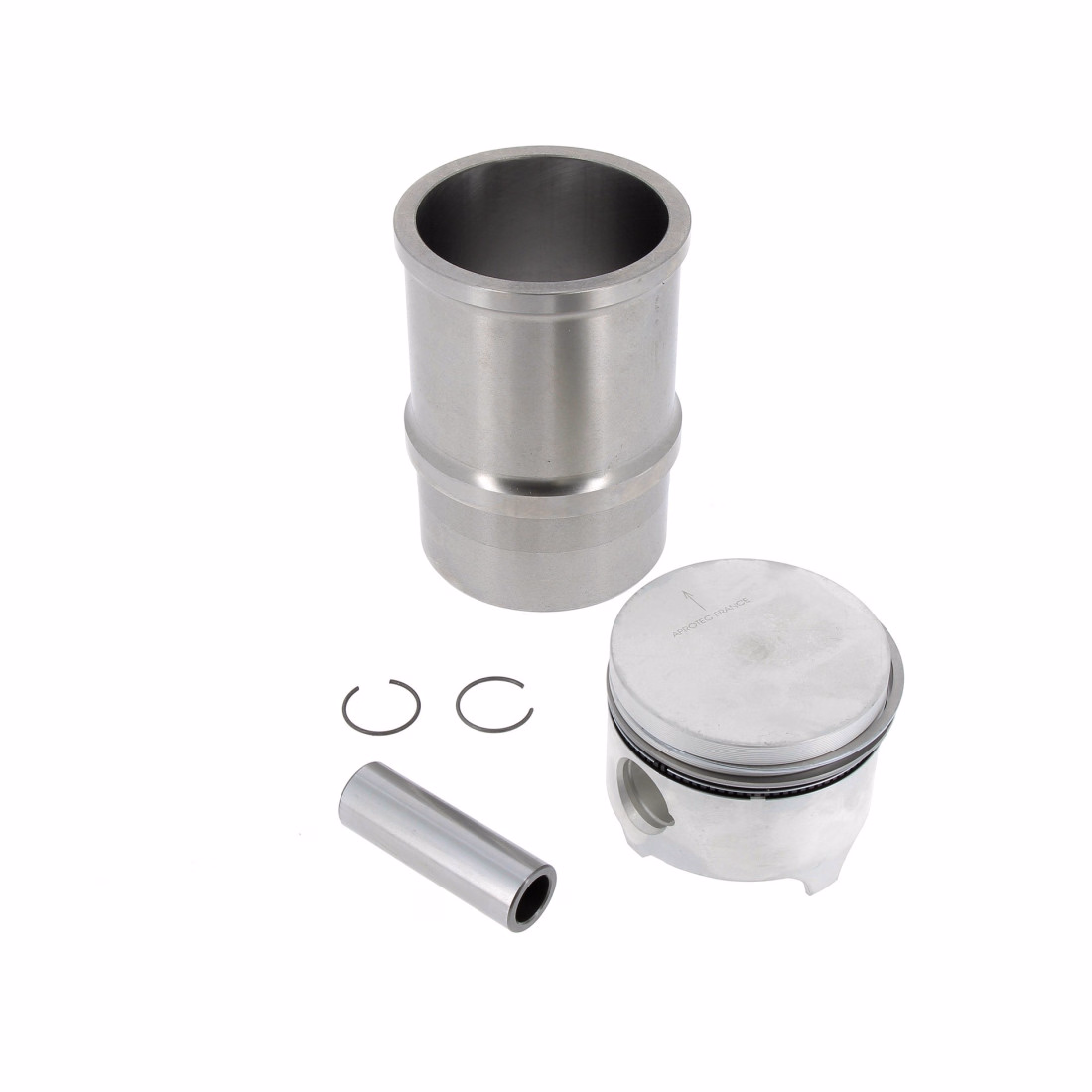

Liner and piston assembly (flat pistons) ⌀84 - Peugeot 504, 505, J5, J7

Features :

• Engines: XM7, XM7P, XM7T
• Displacement: 1796cc
• Bore: Ø84mm
• 4 liners and pistons (rings 1.5 + 2 + 4mm and pins included)

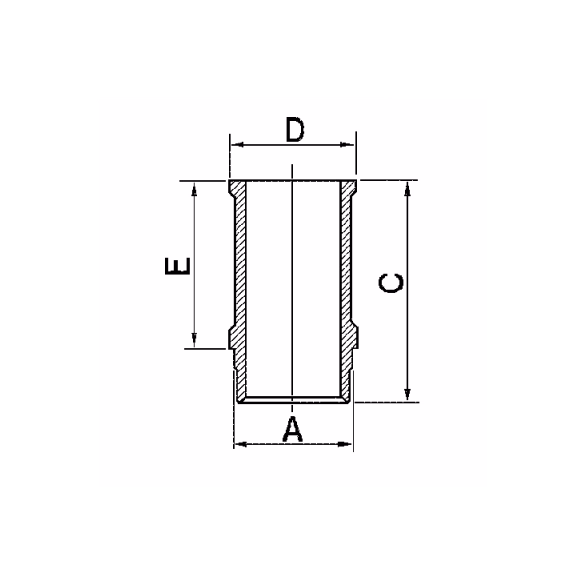

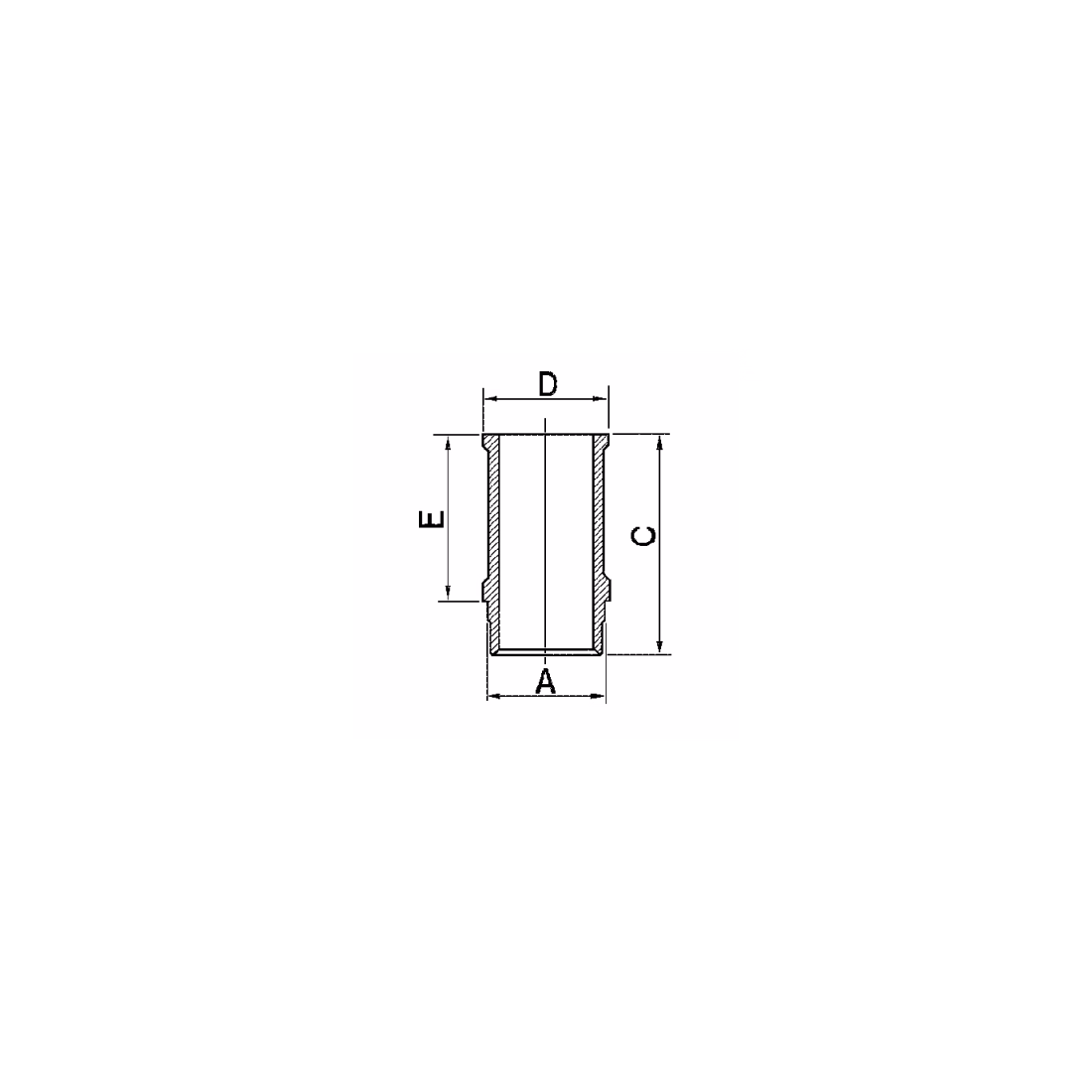

• Liner base diameter: Ø93mm (A)
• Total liner height : 136.20mm (C)
• Liner bearing diameter: Ø99.20mm (D)
• Sleeve height (from base) : 90.03mm (E)
• Axis: Ø23 x 70mm
• Height piston pin - top of piston: 38mm

Compatible with :

• Peugeot 504 L, GR, SR, Break, Utility, Commercial Engine: XM7
• Peugeot 505 GR Engine: XM7
• Peugeot J5 1.8 Engine: XM7T
• Peugeot J7 1.8 1800Kg Engine: XM7P
