Features :
- Bore: Ø65mm
- Displacement: 956cc
- Engines: 689 01, 689 02

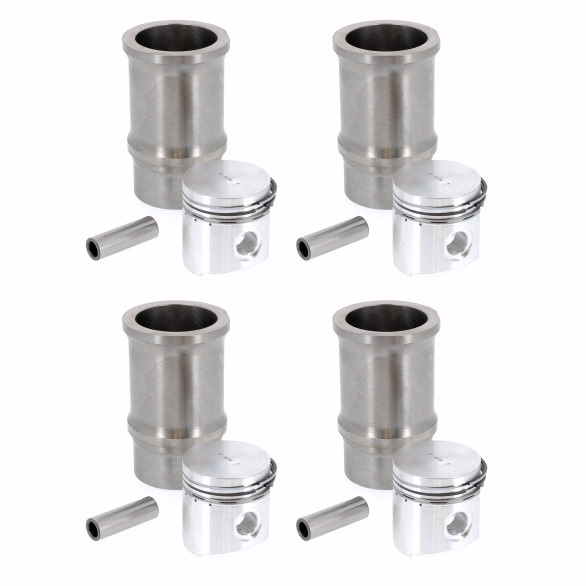

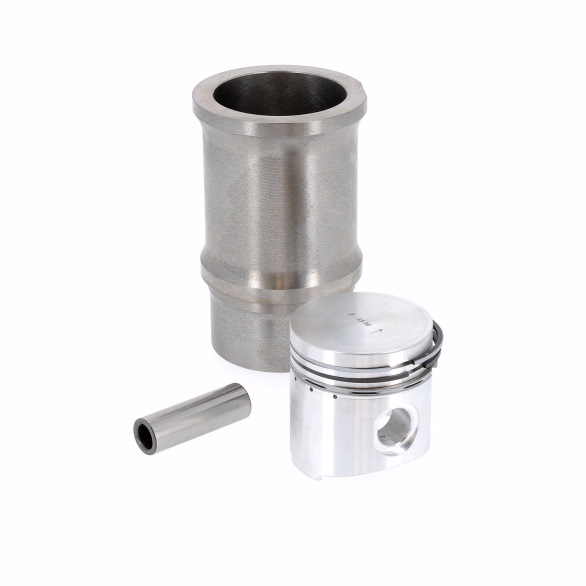

- 4 liners and pistons (rings 2+2+3.5mm and pins included)
- Liner base diameter: Ø75.48mm (A)
- Total liner height: 135mm (C)
- Liner bearing diameter: Ø84.75mm (D)
- Sleeve height (from base) : 94.80mm (E)
- Pin: Ø18 x 57mm
- Total piston height : 67.50mm
- Height piston pin - top of piston: 40mm
Compatible with :
- Renault R8 from 1962 to 1967
- Renault Floride S from 1962 to 1967
- Renault Caravelle from 1962 to 1967
