Piston shirt set (4 cyl) Ø78.00 for Alpine A310 1605cc

Features:

• Engine: 1605cc
• Number of cylinders: 4
• Bore: Ø78mm

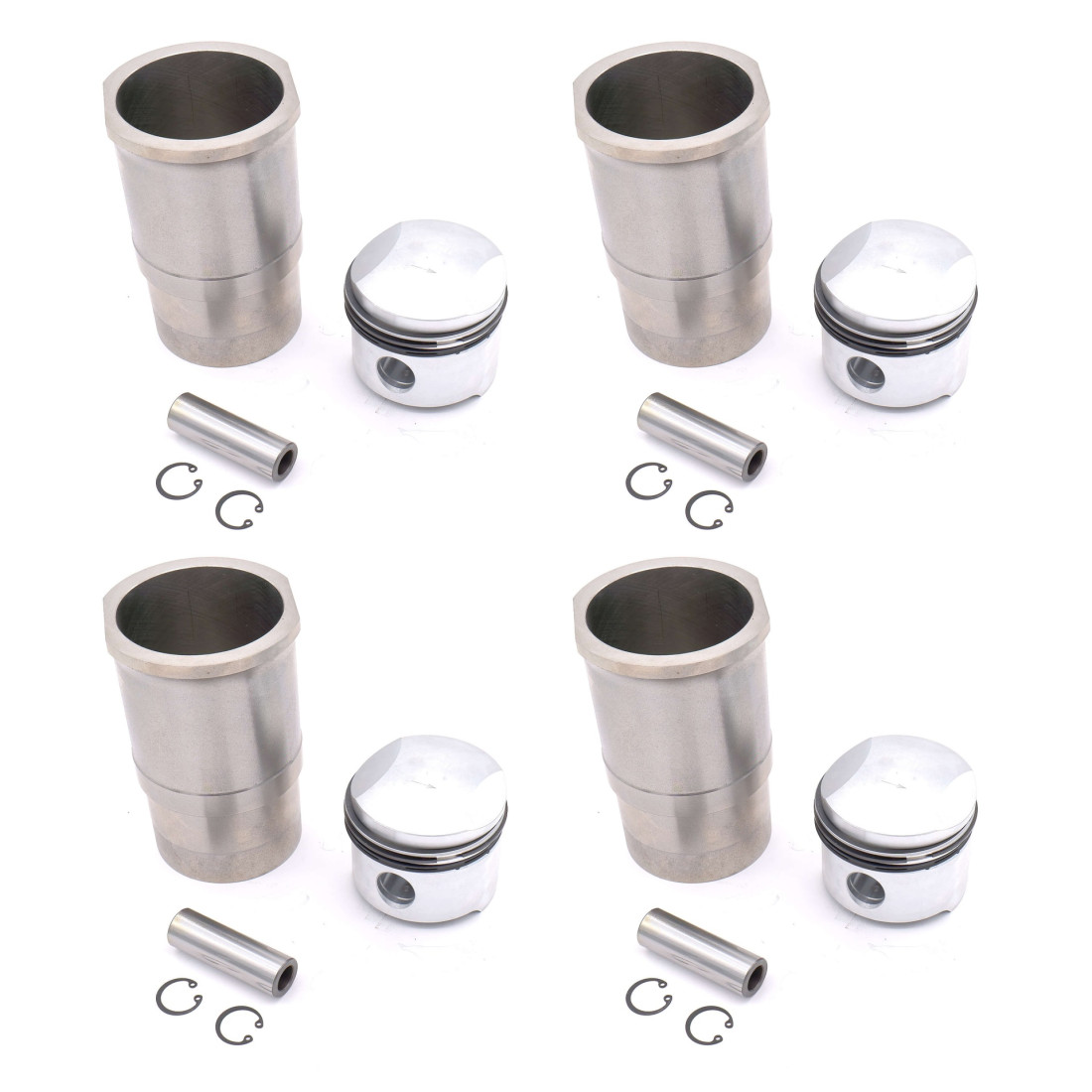

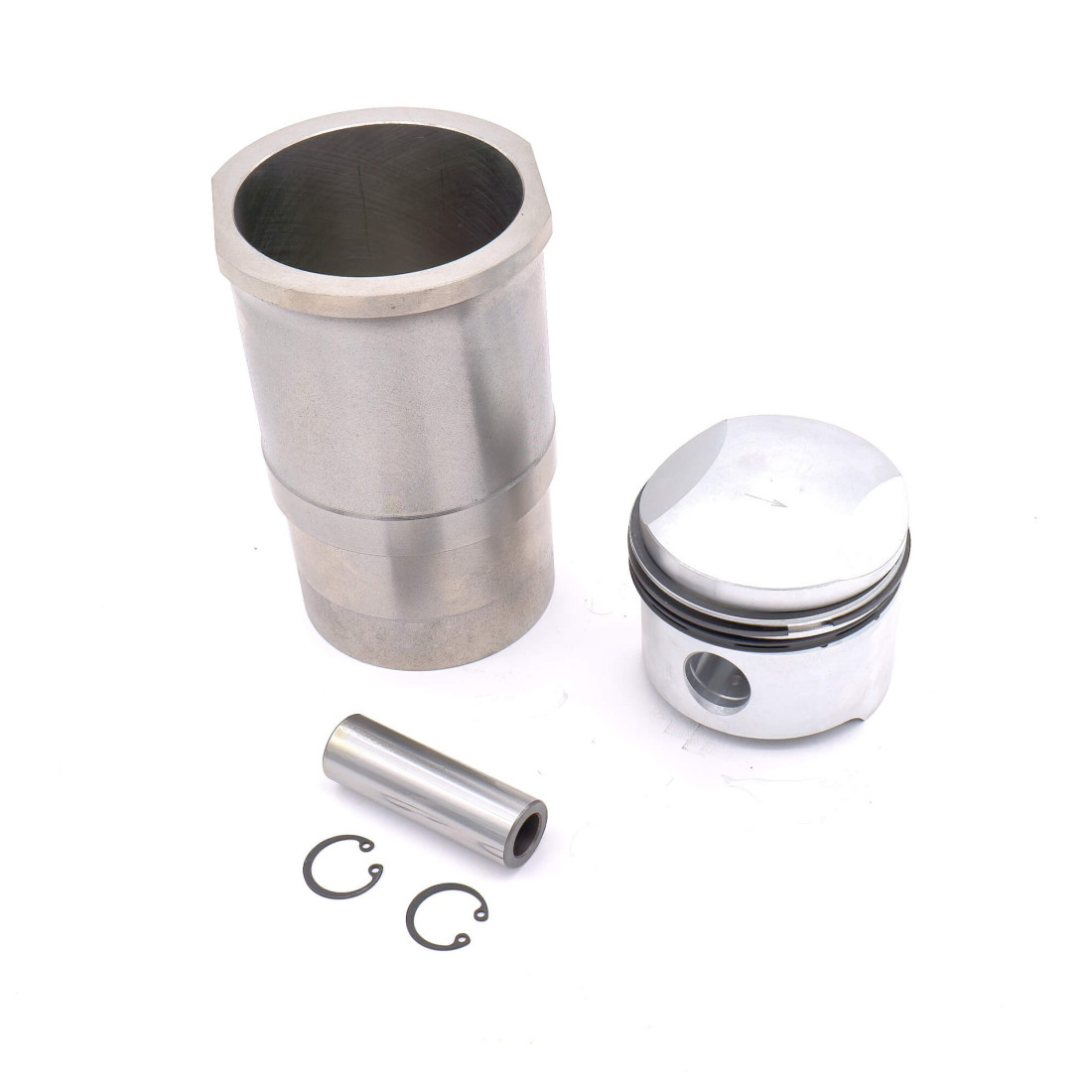

• 4 liners and pistons (segments 1.75+2+4mm and pins included)

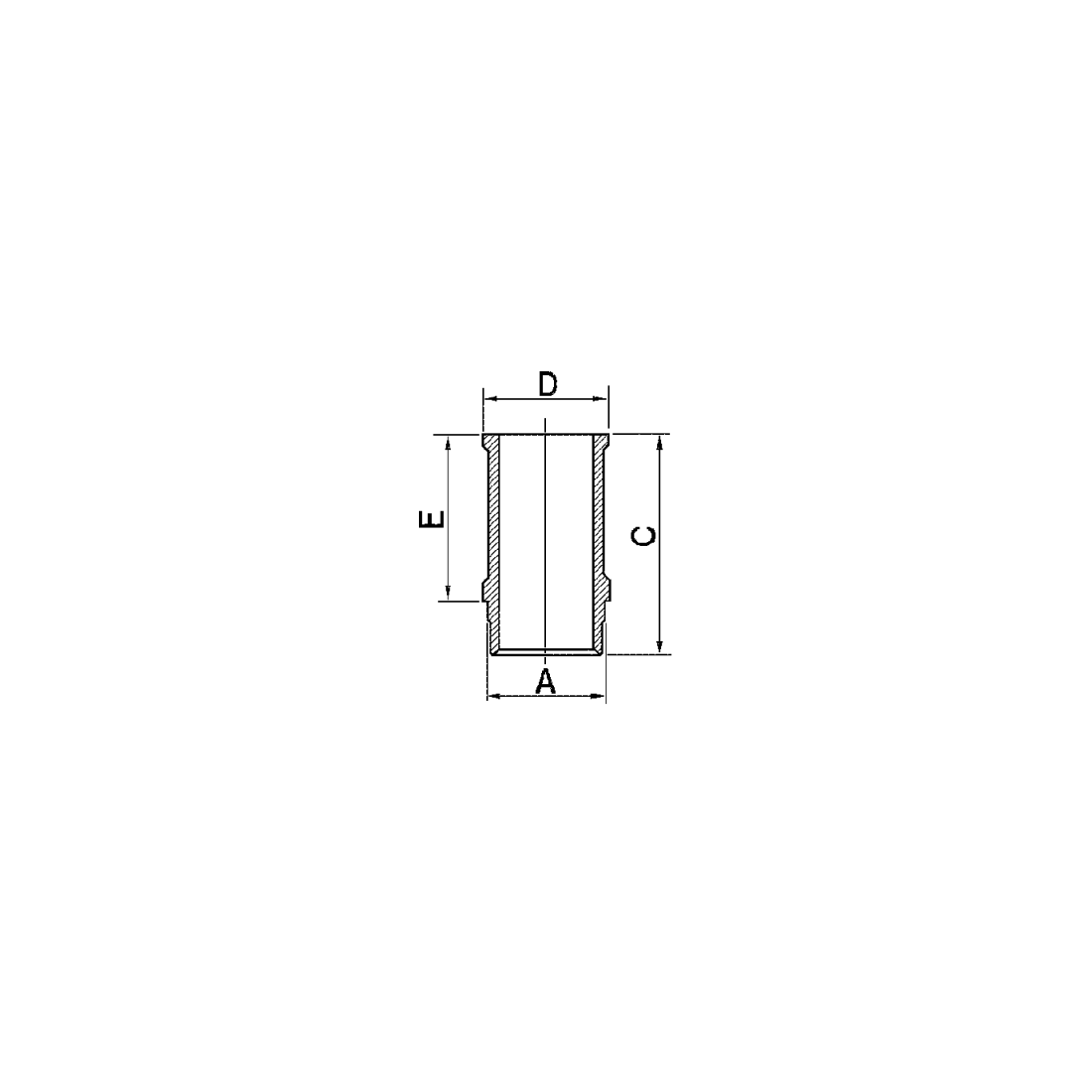

• Liner base diameter: Ø82.50mm (A)
• Total liner height: 143.50mm (C)
• Liner seating diameter: Ø96mm (D)
• Liner height (from the base): 92.50mm (E)
• Pin: Ø22 x 66.25mm
• Total piston height: 72.25mm
• Height from piston pin to top of piston (excluding domed part): 40.50mm
• Height (domed part): 7.75mm

Compatible:

• Alpine A310 1605cc
