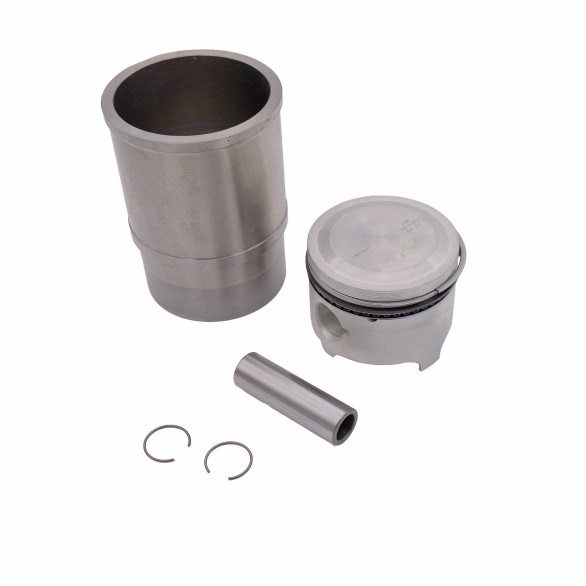

Set of sleeves and pistons Ø88 Peugeot 504, 505, J5, Citroën C25

Features:

• Engines: XN1, XN1P, XN1T, XN2
• Bore: 88mm

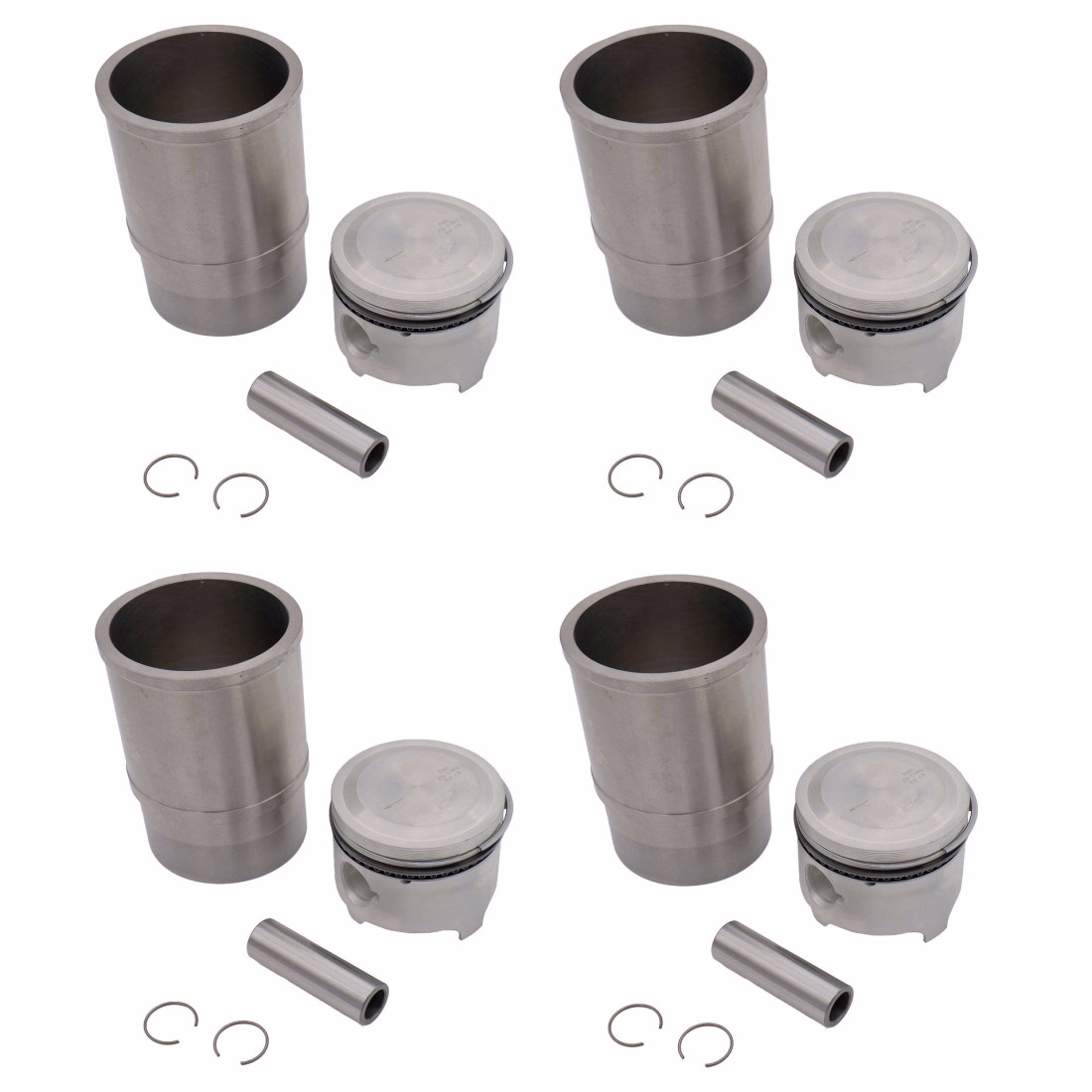

• 4 liners and pistons (rings 1.5+2+4mm and pins included)

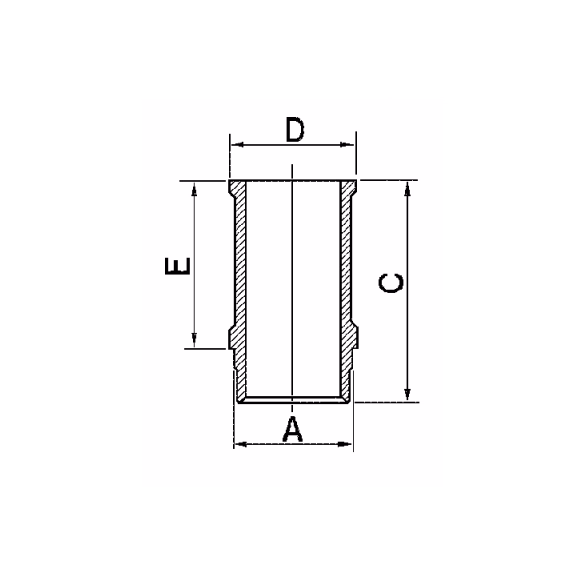

• Liner base diameter: Ø93mm (A)
• Total liner height: 136.20mm (C)
• Liner bearing diameter: Ø101.90mm (D)
• Liner height (from the base): 90.03mm (E)
• Pin: Ø23 x 74mm
• Total piston height: 73mm
• Piston pin height - top of the piston (excluding domed part): 37.90mm
• Height (domed part): 2.55mm

Compatible:

• Citroën C25 1071cc Gasoline Utility, Van, Combi Engine: XN1T-170
• Peugeot 504 GL, GR, Break, Utility Engine: XN1
• Peugeot 504 Injection, Ti (Convertible, Coupe) Engine: XN2
• Peugeot 505 GL, GR, SR, Break Engines: XN1
• Peugeot J5 Van and Combi Engine: XN1T
