Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30
Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30

Set of V6 Ø88 sleeves and pistons Peugeot 504, 604 Renault R30

PN0001458
Out-of-Stock
€999.90
Tax included
Do you want to receive an alert when product is back in stock?

We will send you an email once the product becomes available. Your email address will not be shared with anyone else.
Out-of-Stock
€999.90

Description

Features:

  • Bore: 88mm
  • Engine: PRV

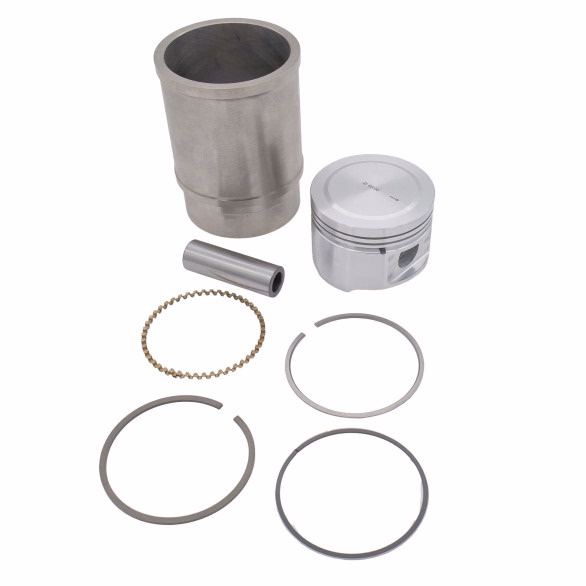

  • 6 sleeves and pistons (rings 1.5+2+4mm and pins included)

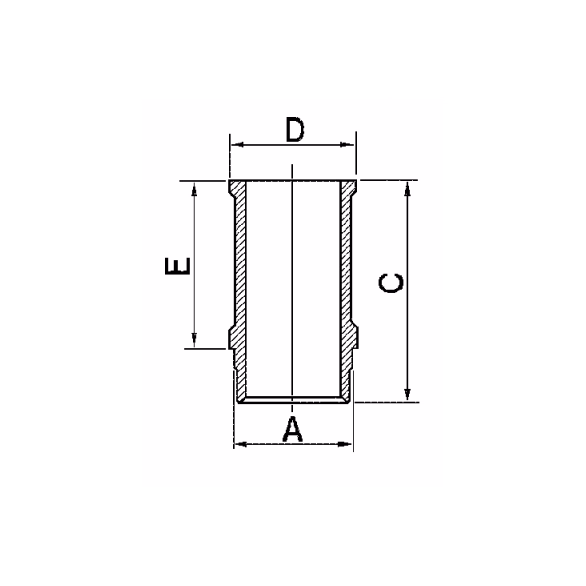

  • Sleeve base diameter: Ø93.48mm (A)
  • Total sleeve height: 131.80mm (C)
  • Sleeve bearing diameter: Ø102.20mm (D)
  • Sleeve height (from the base): 99.10mm (E)
  • Pin: Ø23.50 x 72mm

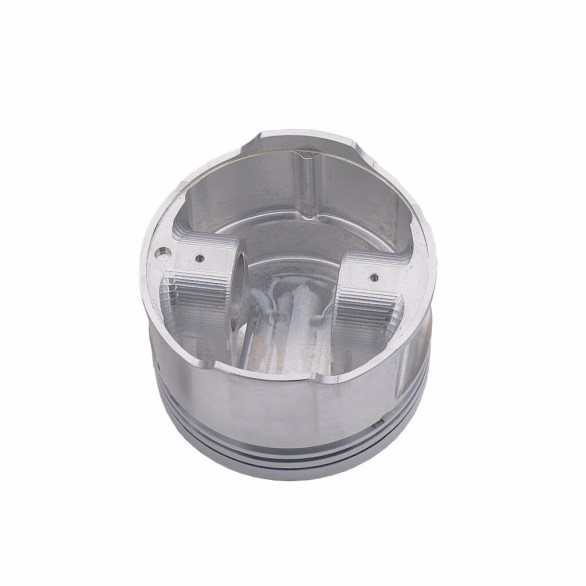

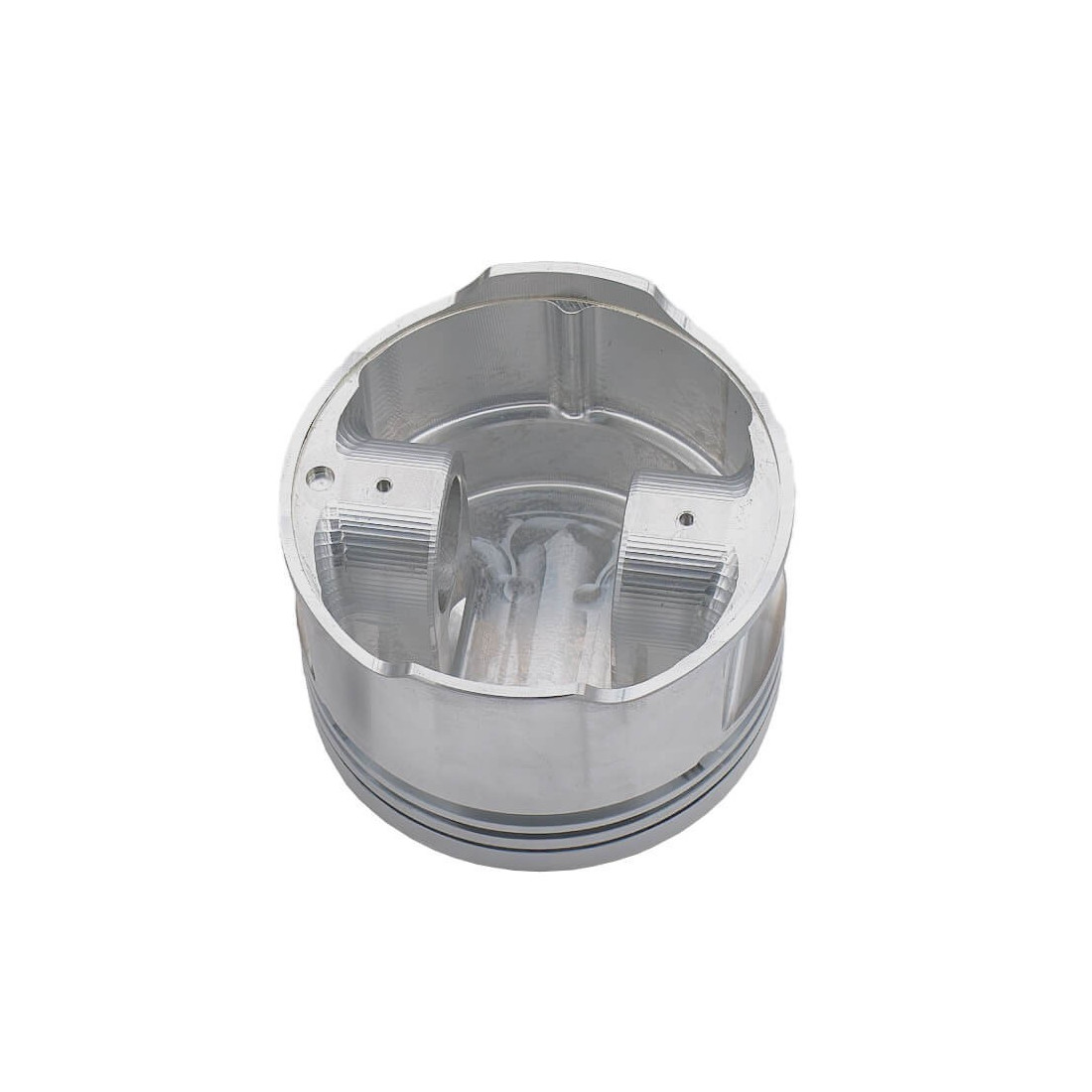

  • Total piston height: 68.40mm
  • Piston pin height - top of piston (excluding domed part): 38.25mm
  • Height (domed part): 1.15mm

Compatible:

  • Peugeot 504 V6 Coupe, convertible 15hp Engine: ZM112 2664cc
  • Peugeot 604 V6 TI, STI Injection 15hp Engine: ZM112 2664cc
  • Renault R30 V6 TS, Automatic Engine: 144.01 Type: R1273, R1275 2664cc
