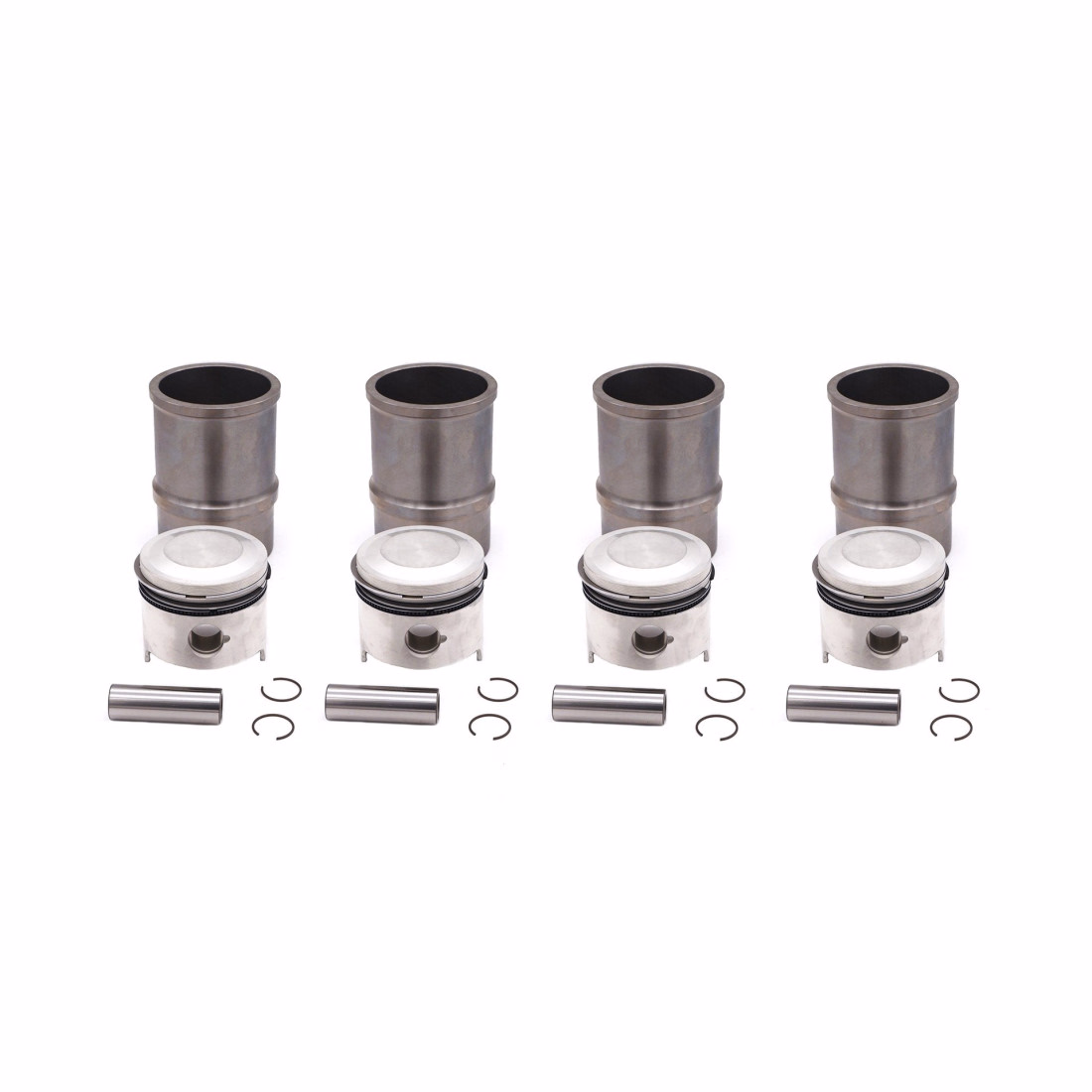

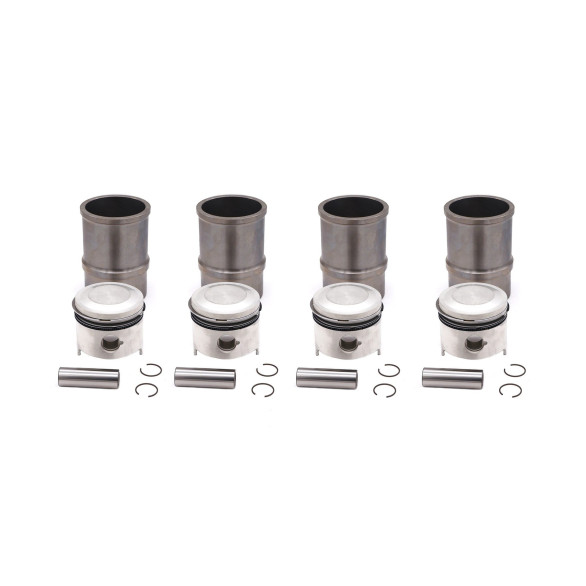

Shirt and piston set (XC7, XC7P) Peugeot 404, 504U, J7, J9

Features :

• Engines: XC7, XC7P
• Displacement: 1618cc
• Bore: ⌀84mm
• 4 liners and pistons (rings 2+2+4.5mm, pins and clips included)

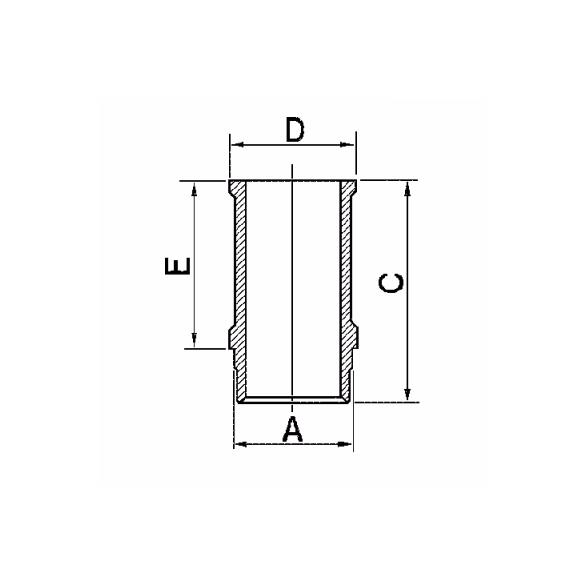

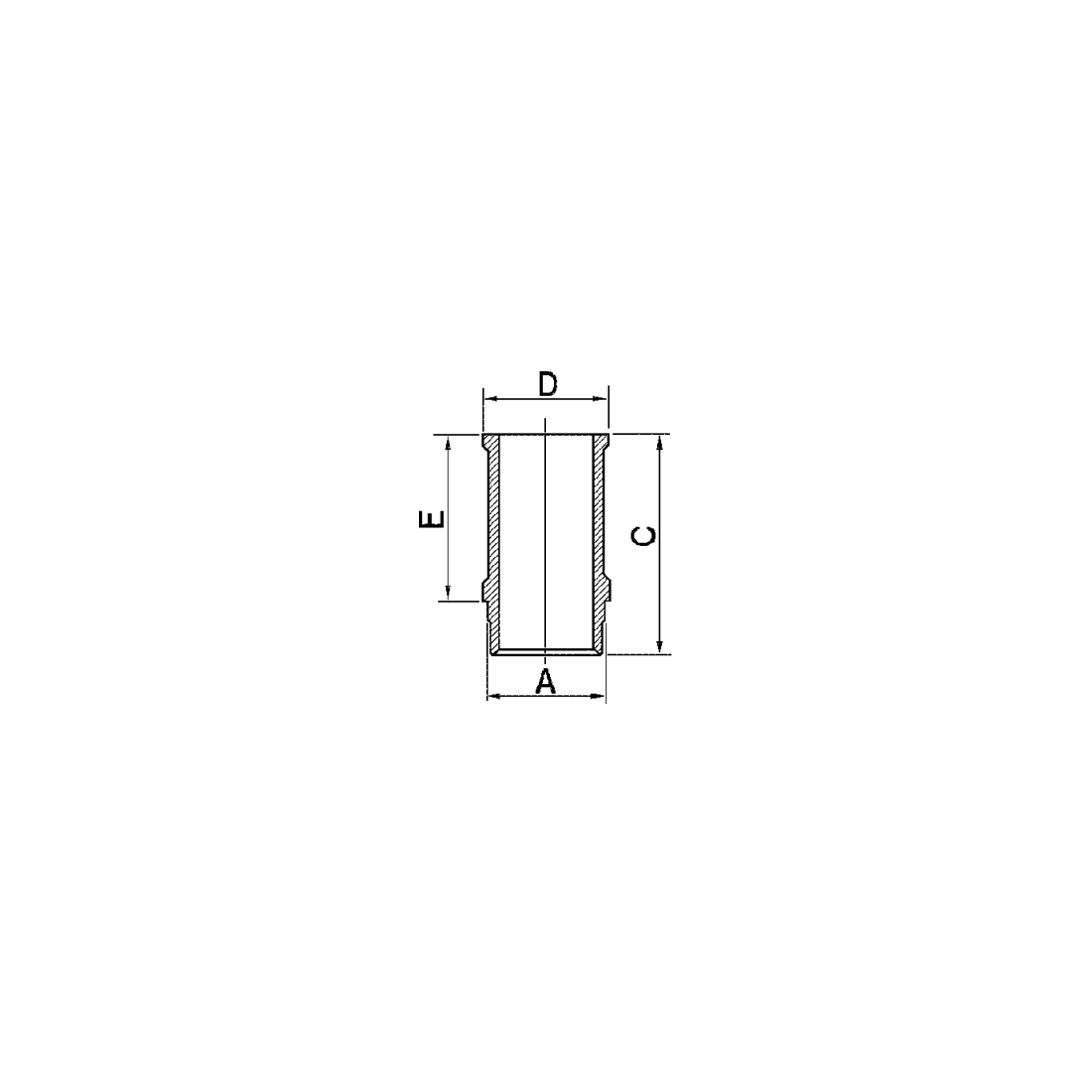

• Liner base diameter: ⌀93mm (A)
• Total liner height : 136.20mm (C)
• Sleeve bearing diameter: ⌀99.20mm (D)
• Liner height (from base) : 90.03mm (E)
• Axis: ⌀23 x 70mm
• Height piston pin - top of piston (excluding domed part) : 41.50mm
• Height (domed part) : 3.4mm
• Compression ratio: 7.6:1

Compatible:

• Peugeot 404 engine : XC7 from 10/1970
• Peugeot 404U Pickup U8/U10 engine: XC7 from 10/1970
• Peugeot 504U Pickup U01 engine: XC7 from 10/1970
• Peugeot J7 1400 engine: XC7p from 10/1970
• Peugeot J9 1400, 1500 engine: XC7p from 10/1970
