Piston sleeve assembly Peugeot 404 Ø84 XC5 1618cc engine

Features :

• Engine: XC5
• Displacement: 1618cc
• Bore: 84mm
• 4 liners and pistons (rings 2+2+4.5mm and pins included)

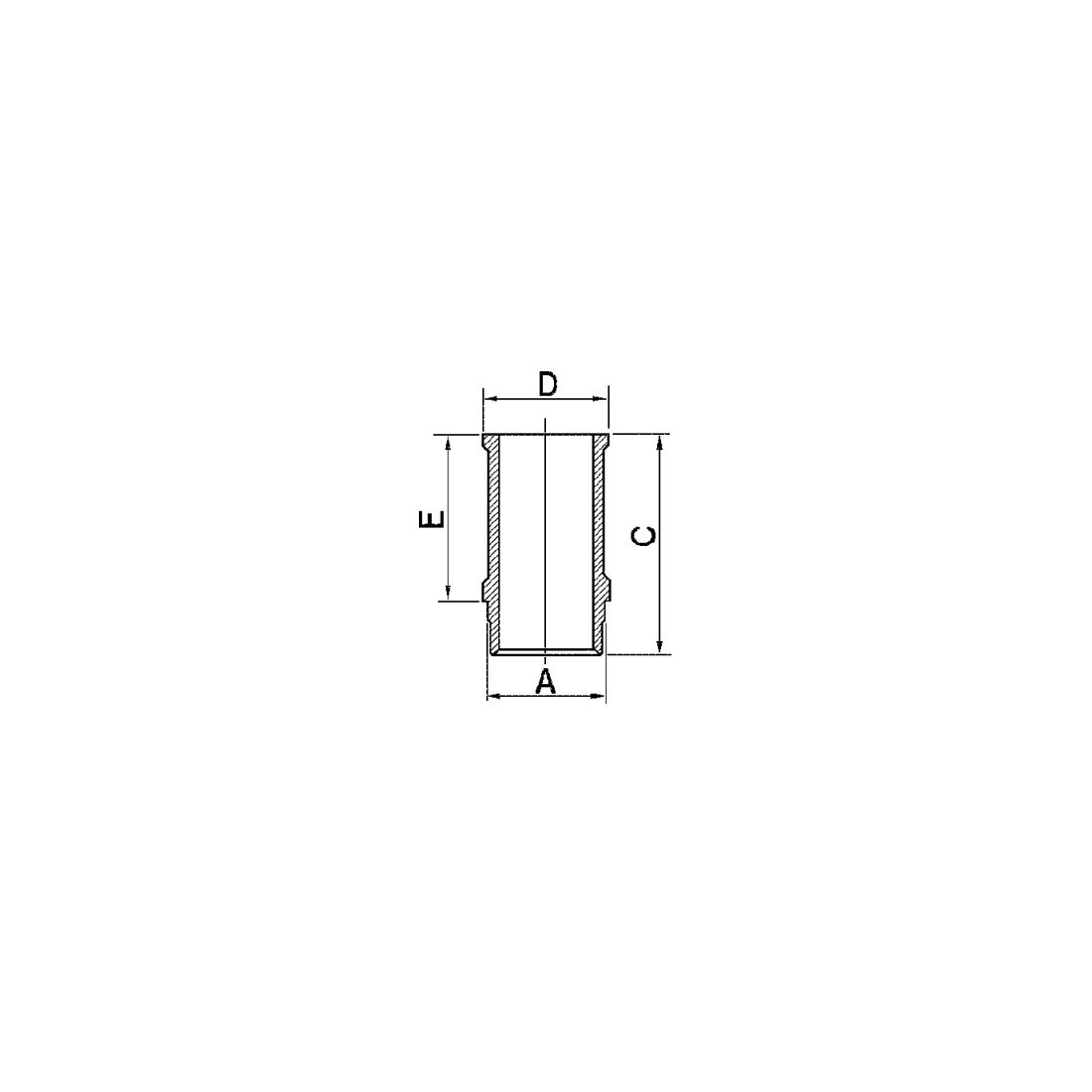

• Liner base diameter: Ø89mm (A)
• Total liner height: 136mm (C)
• Liner bearing diameter: Ø99mm (D)
• Sleeve height (from base): 114mm (E)
• Pin: Ø23 x 69mm
• Height piston pin - top of piston (excluding crown) : 41.50mm
• Height (domed part) : 3.4mm

Compatible :

• Peugeot 404 1.6 L
• Peugeot 404 1.6 LTH from serial no. : 4.883.172 until 10/1970
• Peugeot 404 1.6 TW from serial no. : 5.072.369 until 10/1970
• Peugeot 404 1.6 TH from model number : 5.309.235 until 10/1970
• Peugeot 404 1.6 LTW from model number : 7.000.552 up to 10/1970
• Peugeot 404 1.6 U10 from model number : 7.069.871 up to 10/1970
• Peugeot 404 1.6 J7C from Serie N°: N 27. 597 J to 10/1970
• Peugeot 404 1.6 U6 5 steps
