Shirts and pistons set (Domed) ⌀78mm Citroën Traction 11cv, HY, DS19, ID19

Features:

• Bore: Ø78mm
• Engine: 3 bearings

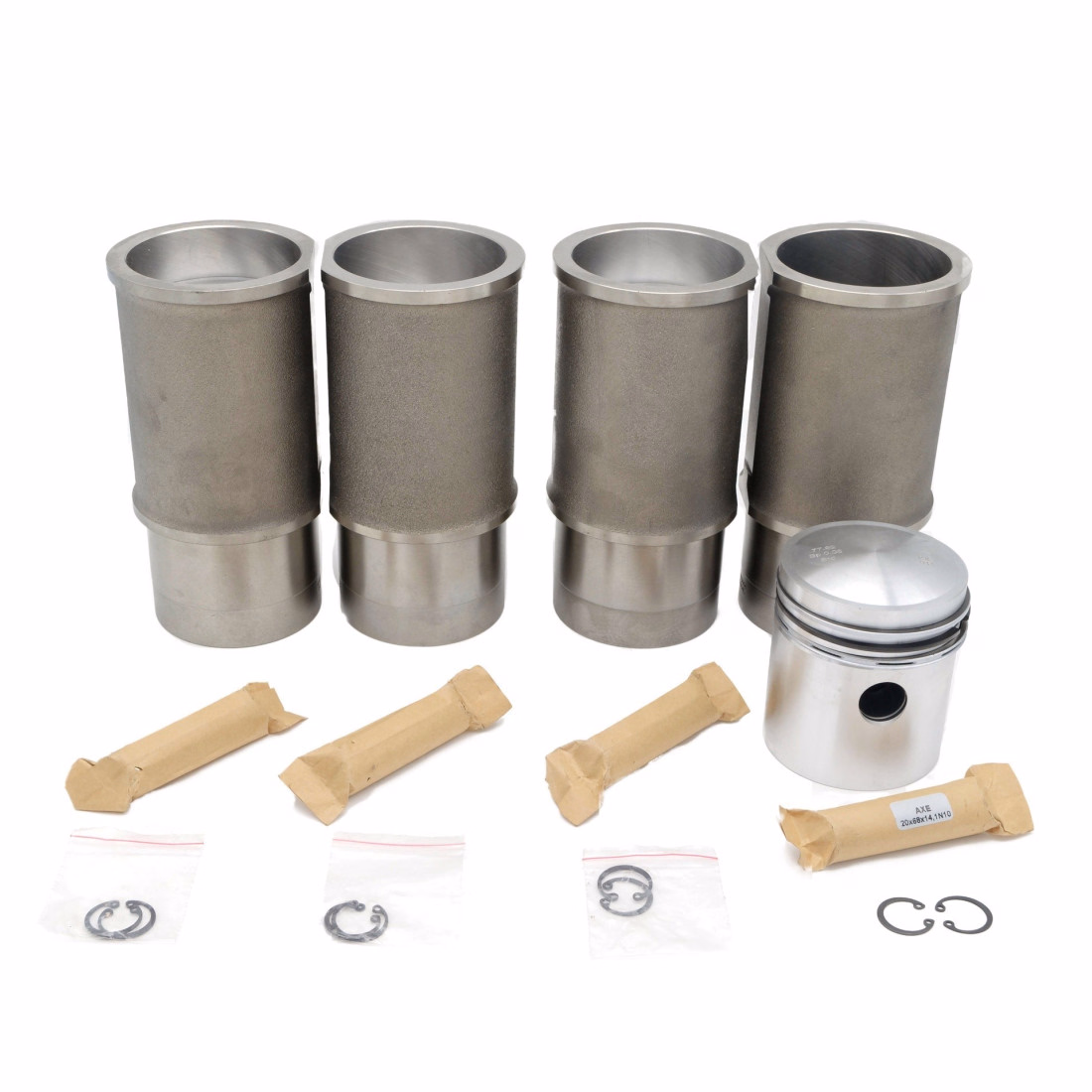

• 4 sleeves and domed pistons (rings 2.5+2.5+4.5mm and pins included)

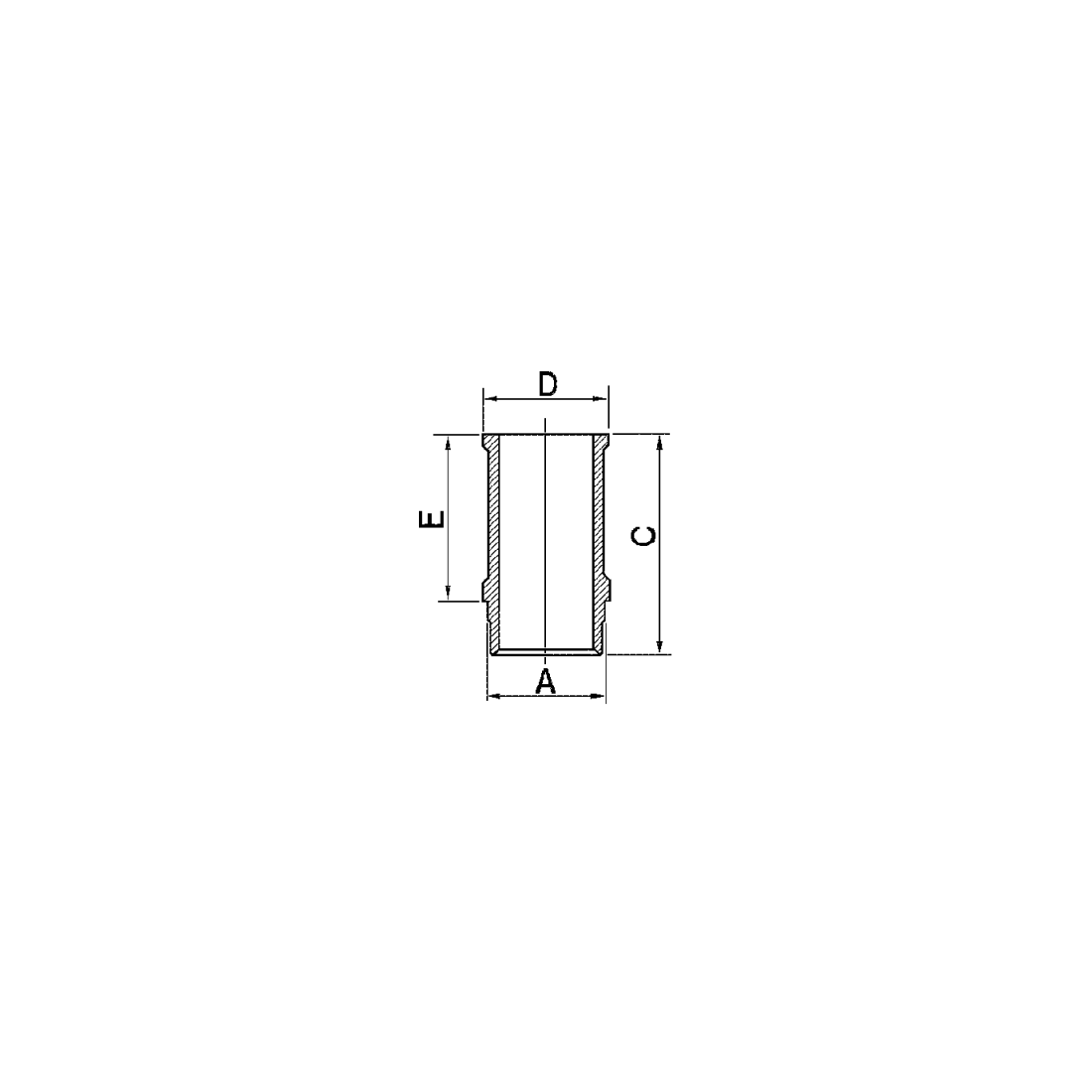

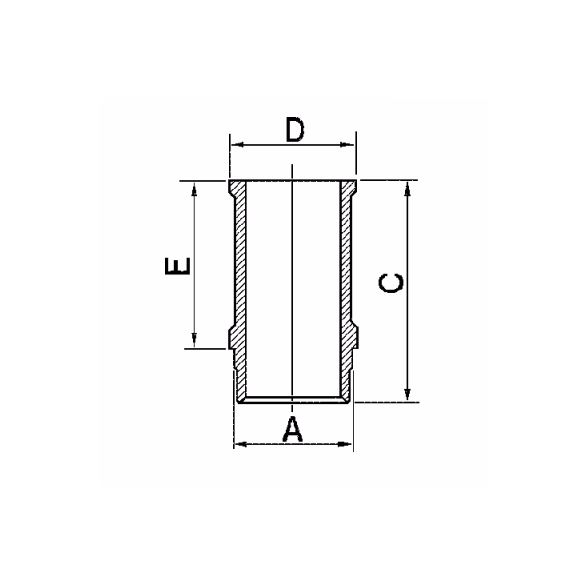

• Sleeve base diameter: Ø84mm (A)
• Total sleeve height: 185mm (C)
• Sleeve bearing diameter: Ø96mm (D)
• Sleeve height (from the base): 125.10mm (E)
• Pin: Ø20 x 68mm
• Total piston height: 90mm
• Height from piston pin to top of piston (excluding domed part): 45mm
• Height (domed part): 6mm

Compatible with:

• Citroën DS19 from 1961 to 1965
• Citroën ID19
• Citroën HY from 1963
• Citroën Traction 11CV

EAN : 3666691003828
