Cylinder Head and Piston Set (Dome-Head) ⌀78mm Citroën, Traction 11cv, HY, DS19, ID19

Specifications:

• Bore: Ø78mm
• Engine: 3-bearing

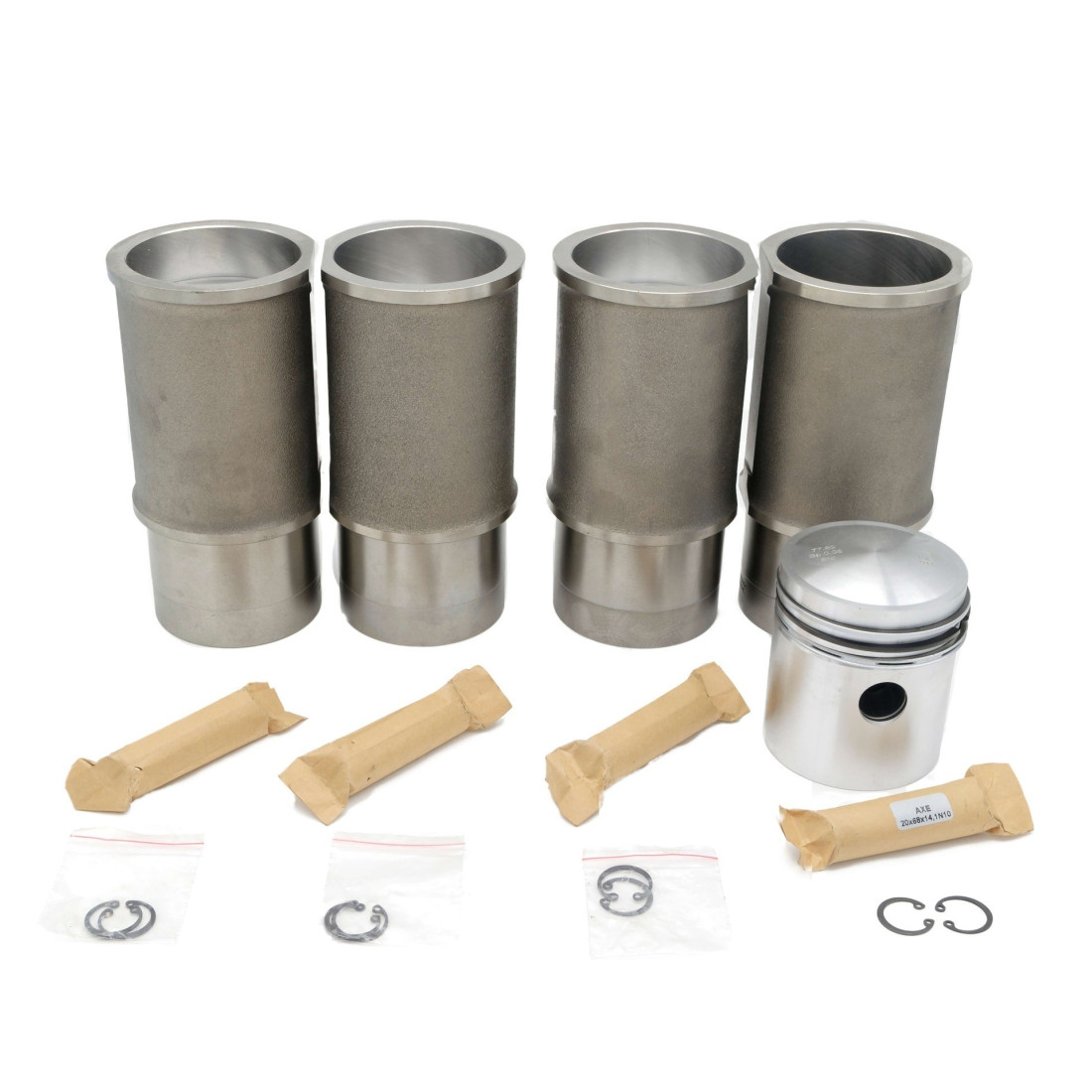

• 4 cylinder liners and domed pistons (piston rings 2.5+2.5+4.5mm, and pins included)

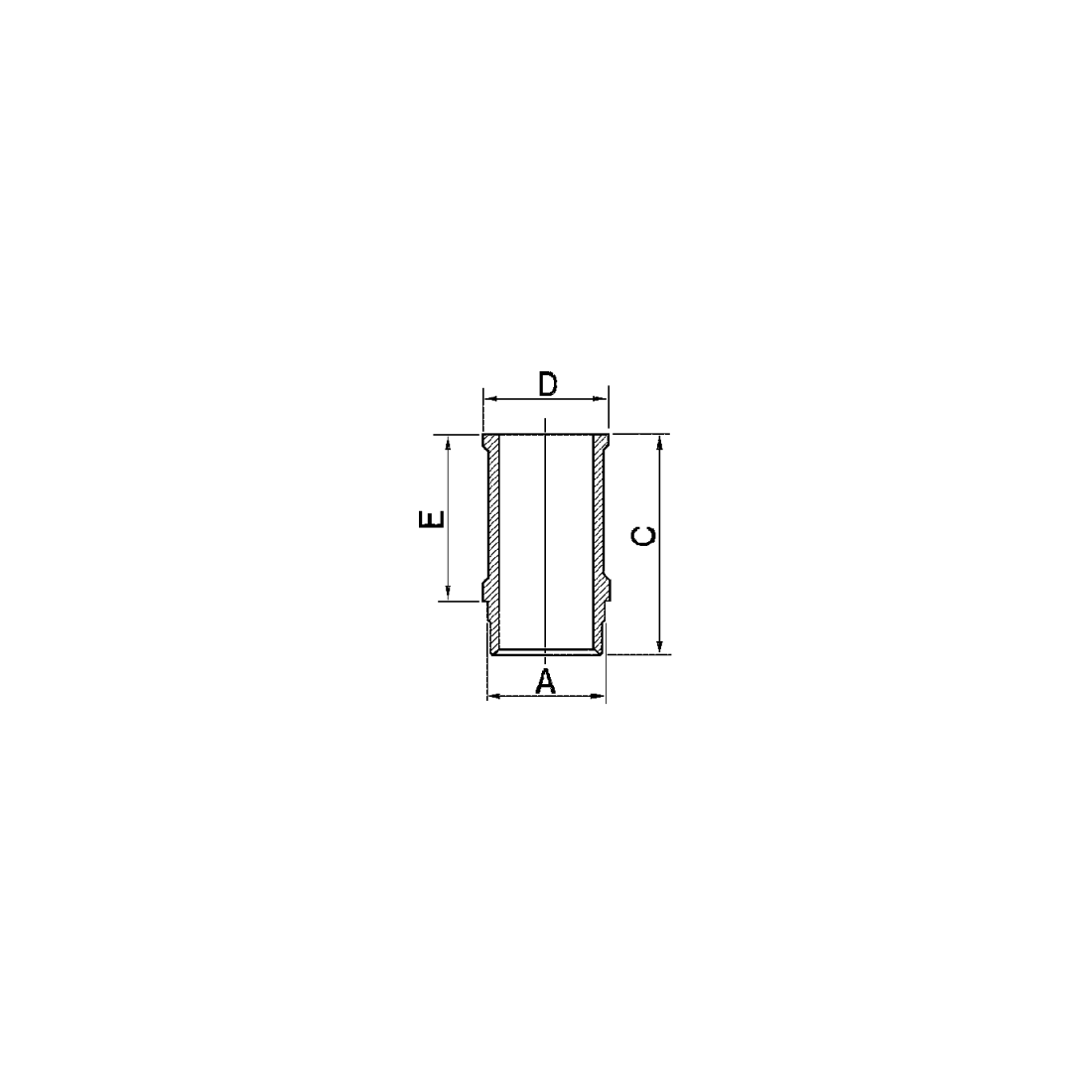

• Liner base diameter: Ø84 mm (A)
• Total liner height: 185 mm (C)
• Liner bearing diameter: Ø96 mm (D)
• Liner height (from the base): 125.10mm (E)
• Piston pin: Ø20 x 68 mm
• Total piston height: 90 mm
• Height from piston pin to top of piston (excluding domed portion): 45 mm
• Height (domed portion): 6 mm

Compatible with:

• Citroën DS19 from 1961 to 1965
• Citroën ID19
• Citroën HY from 1963 onward
• Citroën 11CV front-wheel drive
