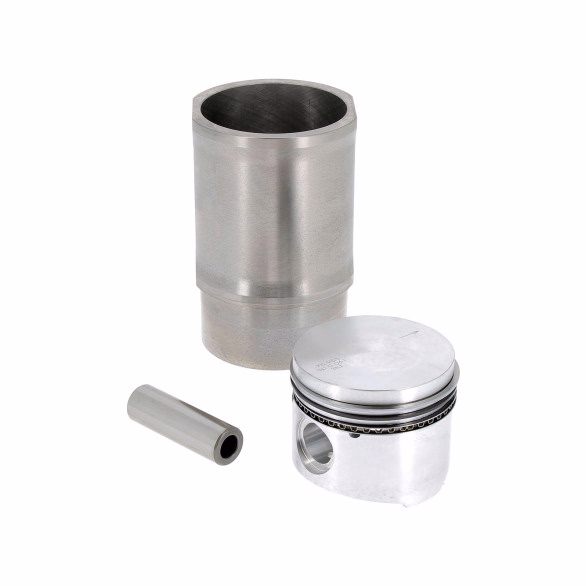

Piston sleeve set Ø76 Renault R5, R9, R11, R18, Express, Fuego, Trafic

Features:

• Bore: Ø76mm
• Displacement: 1397cc
• Engines: 847 20, C1J, C2J, C3J
• 4 liners and pistons (segments 1.75+2+4mm and pins included)

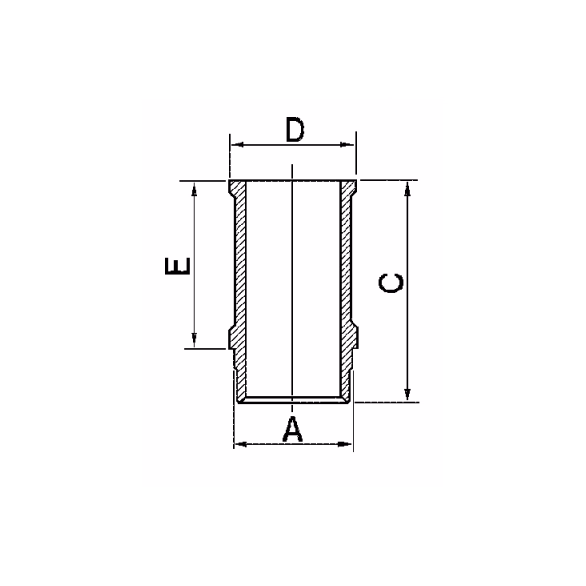

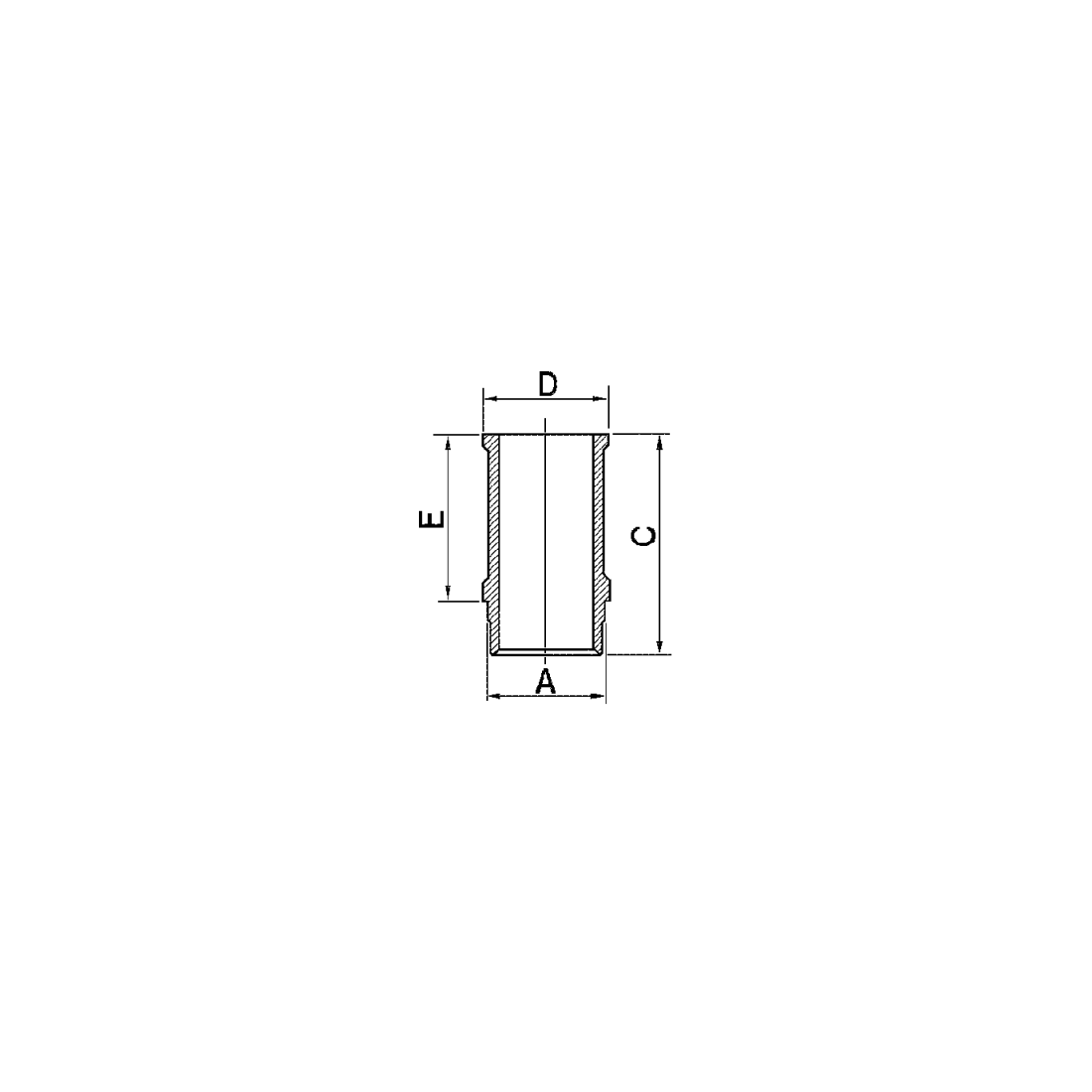

• Liner base diameter: Ø80.60mm (A)
• Total liner height: 134mm (C)
• Liner bearing diameter: Ø90.10mm (D)
• Liner height (from the base): 95mm (E)
• Pin: Ø20 x 63.50mm
• Total piston height: 64mm
• Piston pin height - top of the piston: 37.50mm

Compatible:

• Renault R5 TS, TX, GTL, USA, Automatic
• Renault R9 TL, GTL, TLE
• Renault R11 L, TL, GTL
• Renault R18 TL, GTL
• Renault Express
• Renault Fuego
• Renault Trafic 800kg
