Specifications:
- Motor: 840.25
- Bore: Ø76mm

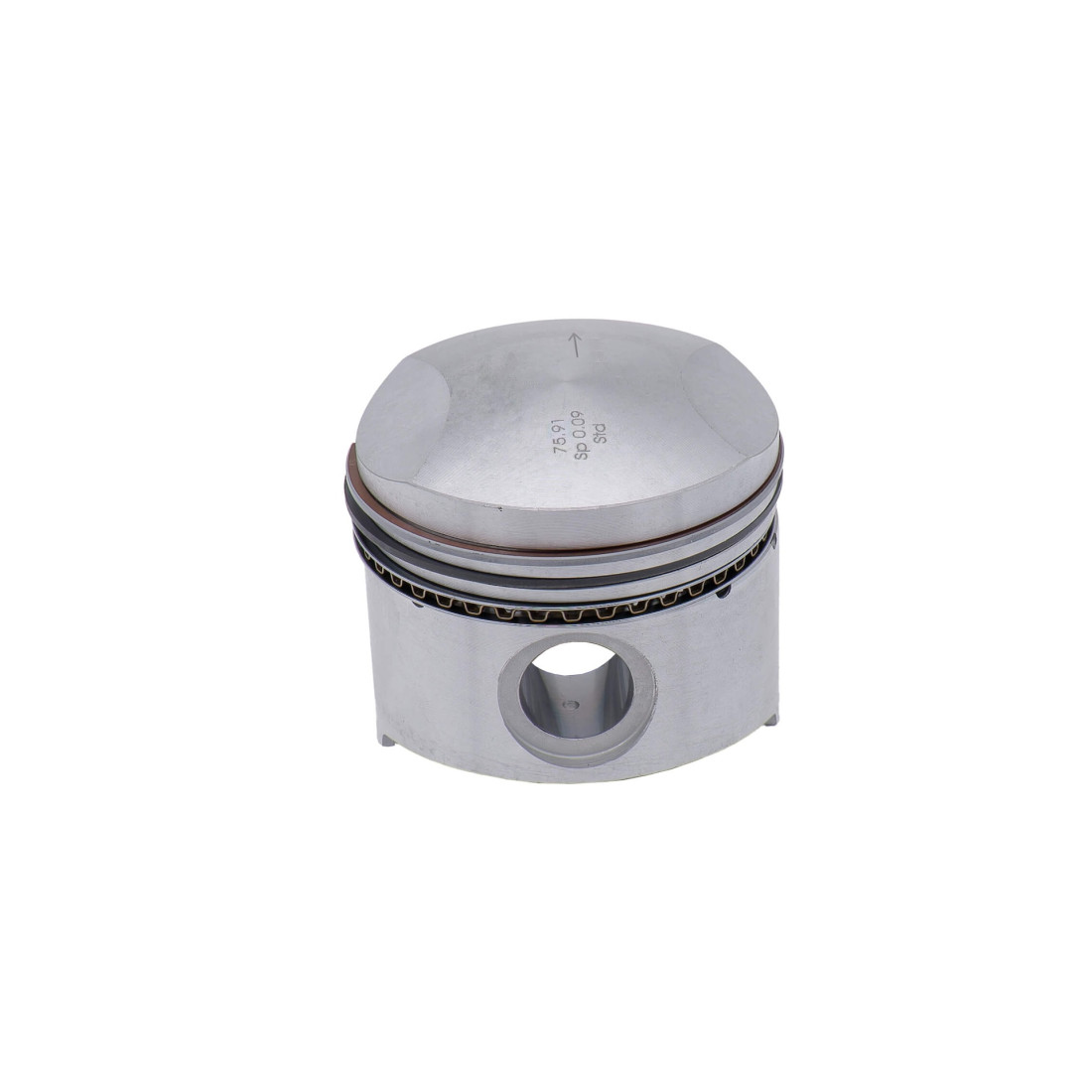

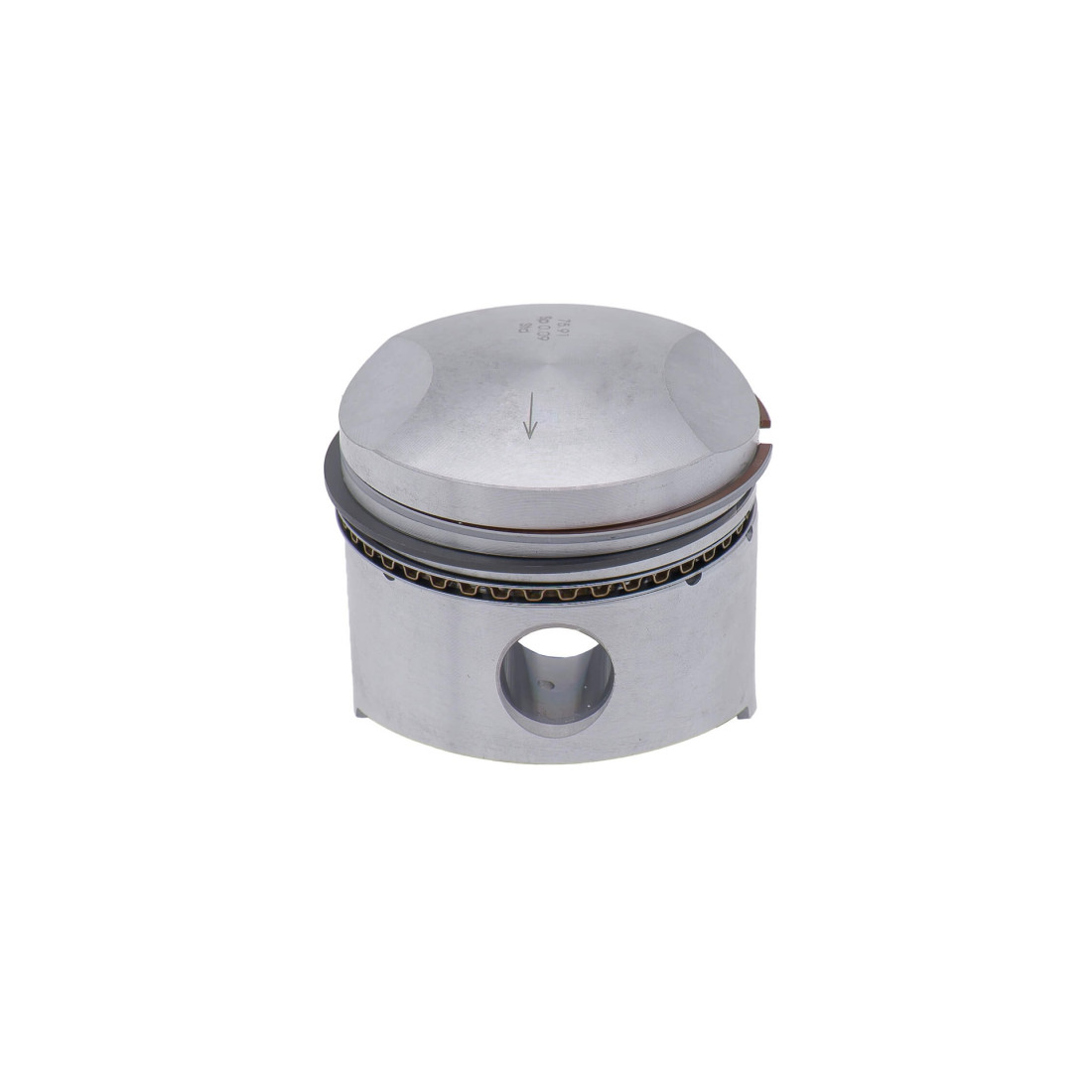

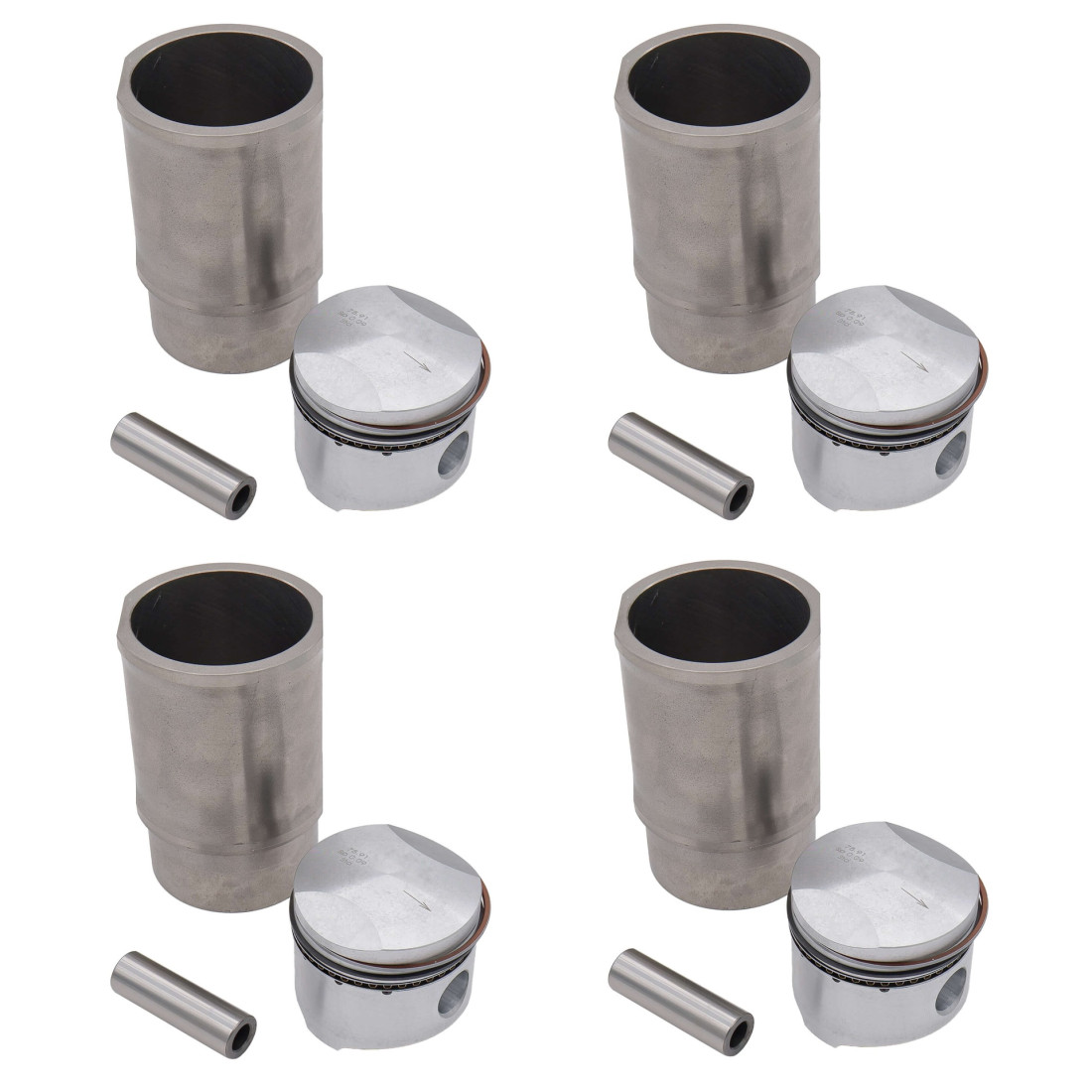

- 4 cylinder liners and pistons (with 1.75+2+4 mm piston rings and pins included)

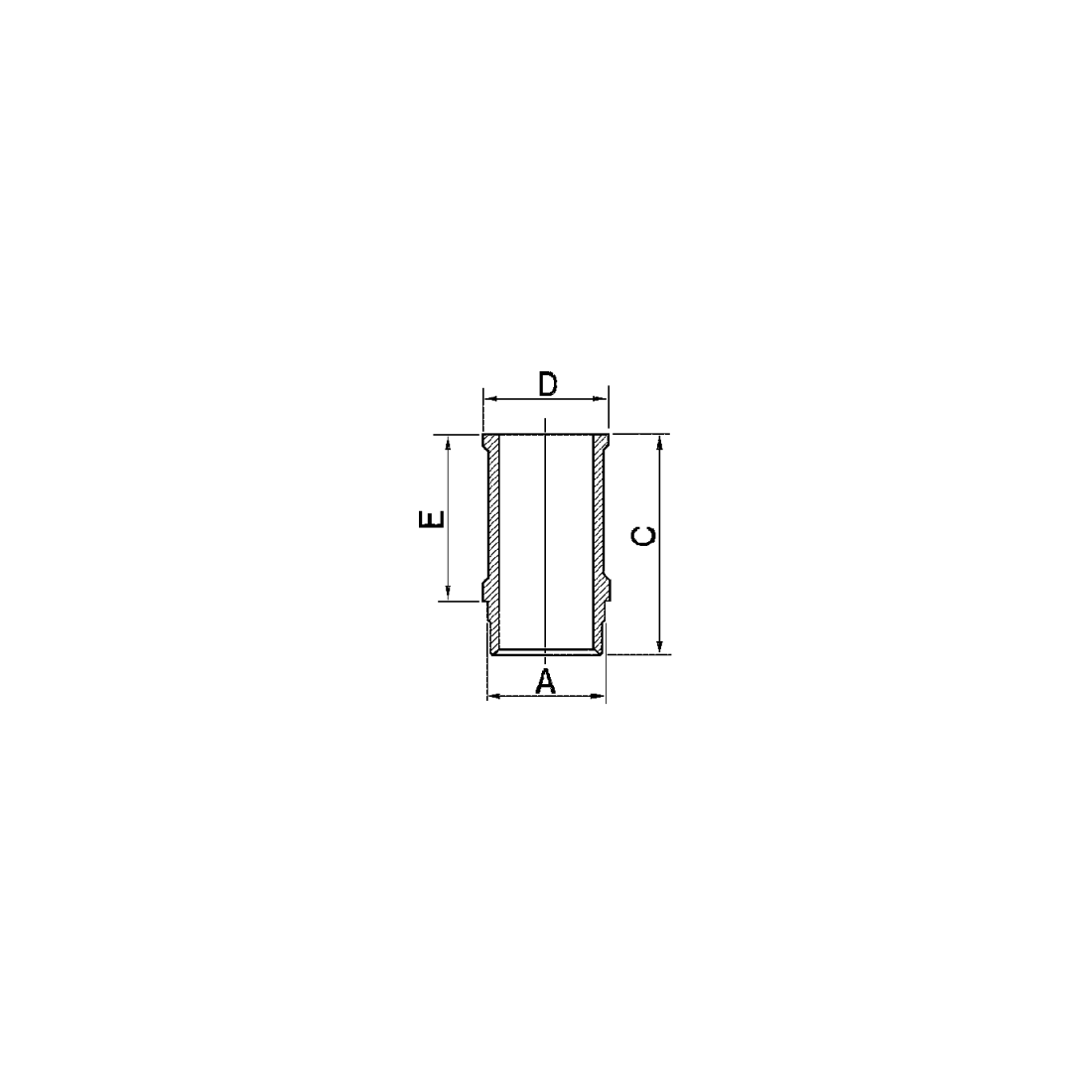

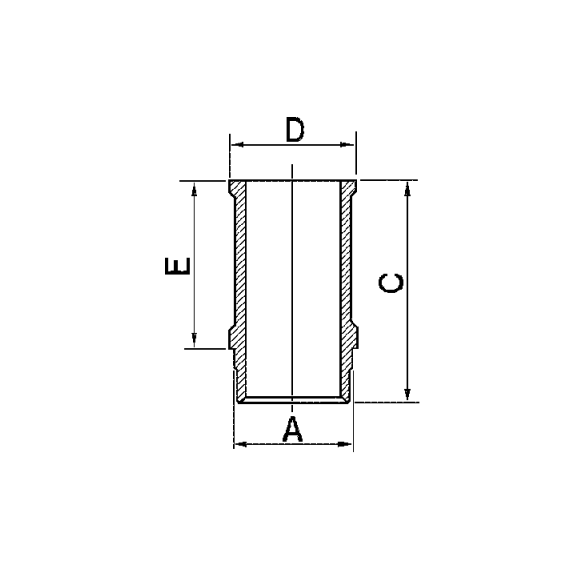

- Liner base diameter: Ø80.60mm (A)
- Total liner height: 134 mm (C)
- Liner bearing diameter: Ø90.10mm (D)
- Liner height (from the base): 95 mm (E)
- Piston pin: Ø20 x 65mm
- Height from piston pin to top of piston (excluding domed portion): 37.50mm
- Dome height: 5 mm
Compatible with:
- Renault R5 Alpine Naturally Aspirated Type: R1223 1397 cc Engine: 840.25
