Liner and piston assembly (XC7, XC7P) Peugeot 404, 504U, J7, J9

Specifications:

• Engines: XC7, XC7P
• Displacement: 1618 cc
• Bore: ⌀84 mm

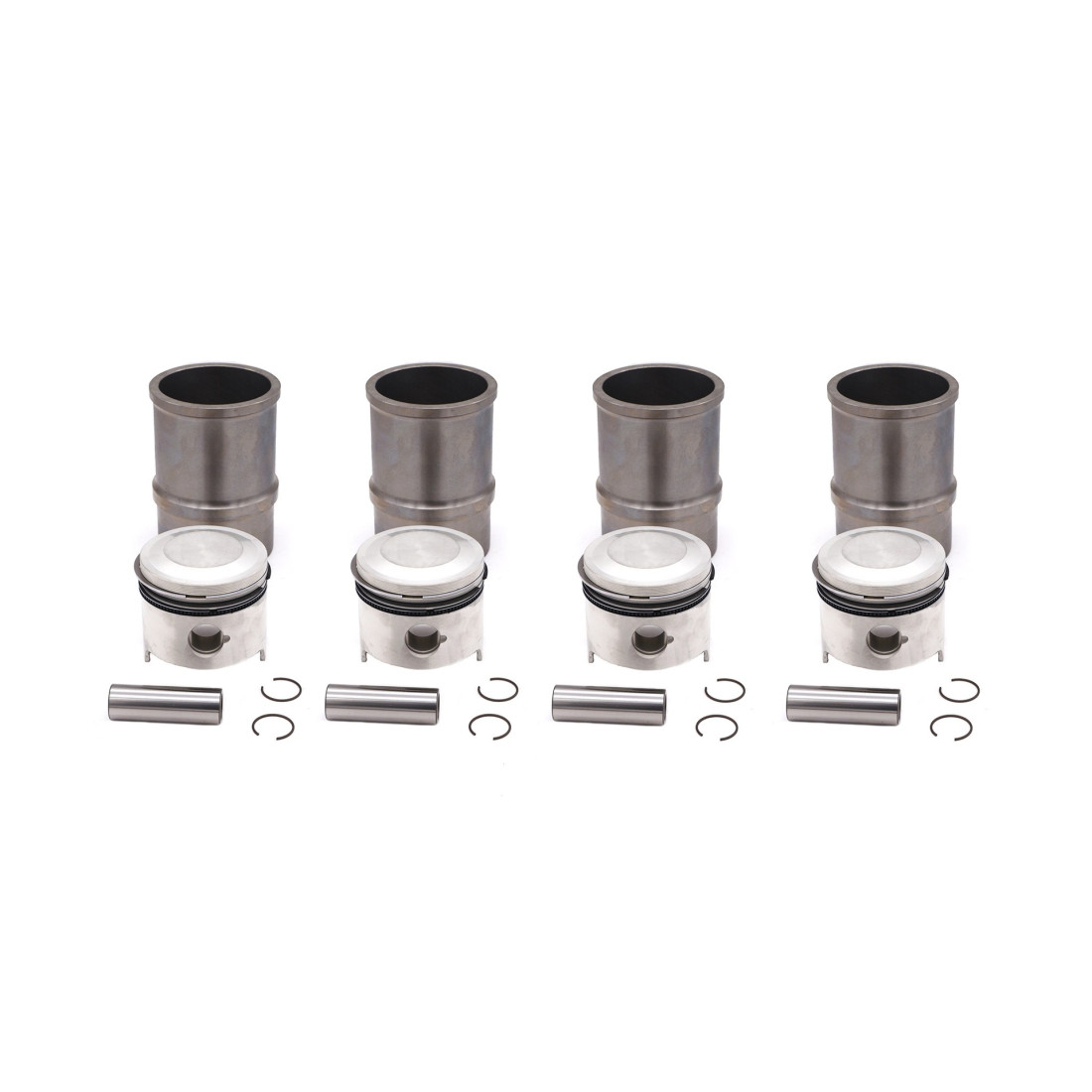

• 4 cylinder liners and pistons ( 2+2+4.5mm piston rings, pins, and clips included)

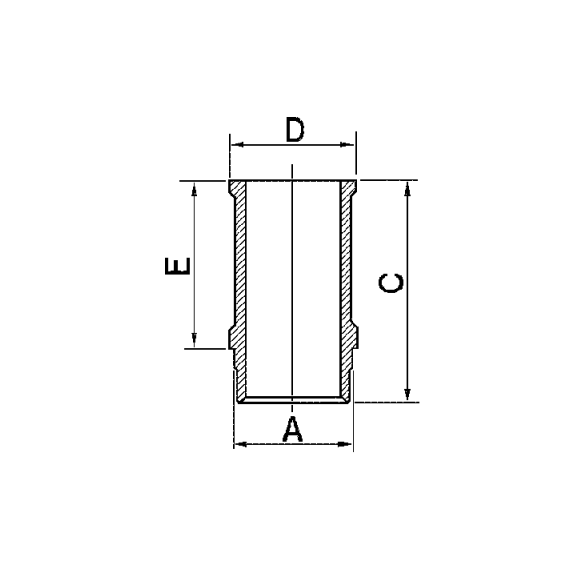

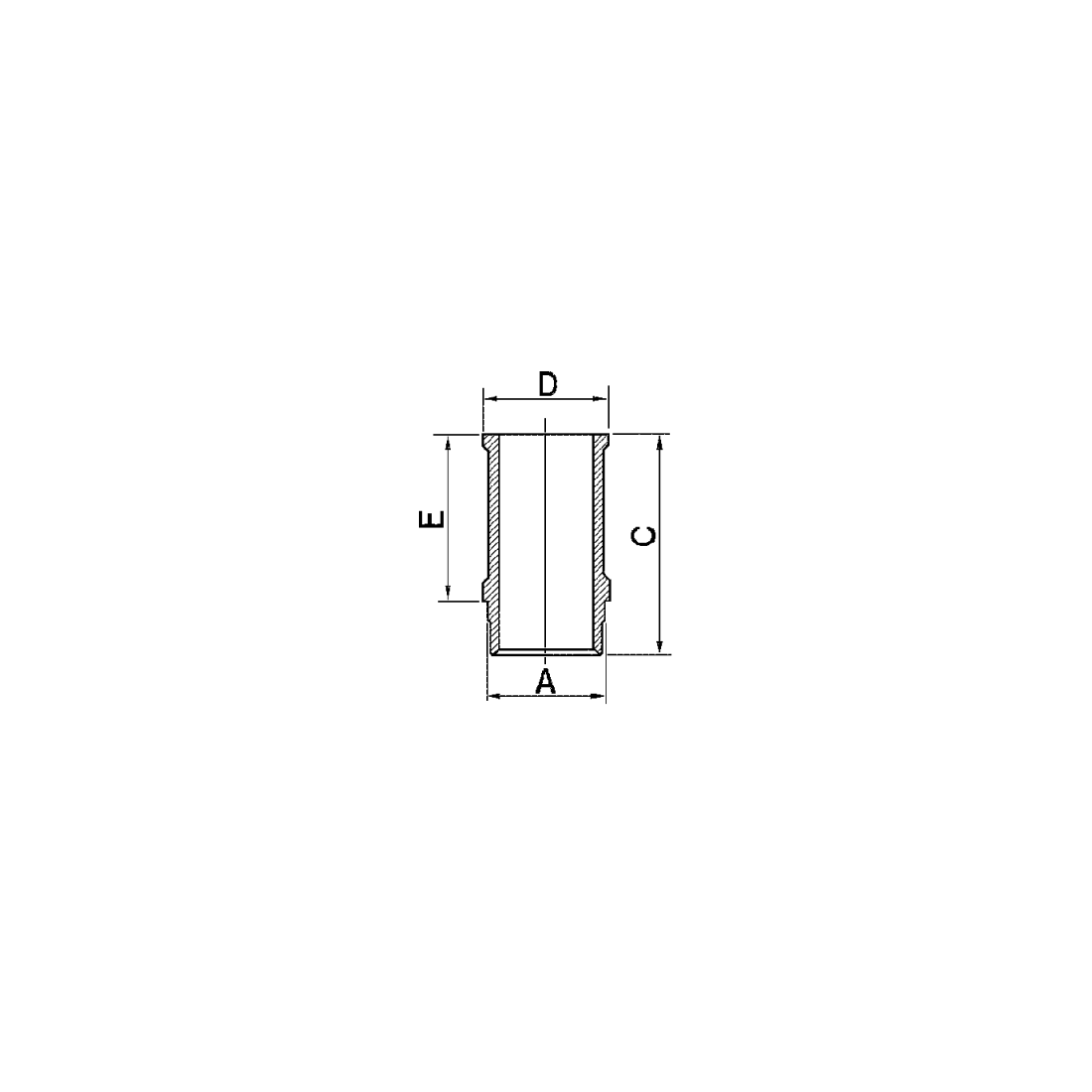

• Liner base diameter: ⌀93 mm (A)
• Total liner height: 136.20mm (C)
• Liner bearing diameter: ⌀99.20mm (D)
• Liner height (from the base): 90.03mm (E)
• Piston pin: ⌀23 x 70 mm
• Height from piston pin to top of piston (excluding domed portion): 41.50mm
• Height (domed portion): 3.4mm
• Compression ratio: 7.6:1

Compatible with:

• Peugeot 404 engine: XC7 starting in October 1970
• Peugeot 404U Pickup U8/U10 engine: XC7 starting in October 1970
• Peugeot 504U Pickup U01 engine: XC7 starting in October 1970
• Peugeot J7 1400 engine: XC7p starting in October 1970
• Peugeot J9 1400, engine: 1500 XC7p from October 1970
