Liner and piston assembly for Peugeot 403 8hp, 404 U6, J7 B (1400kg)

Specifications:

• Number of cylinders: 4
• Bore: Ø80mm

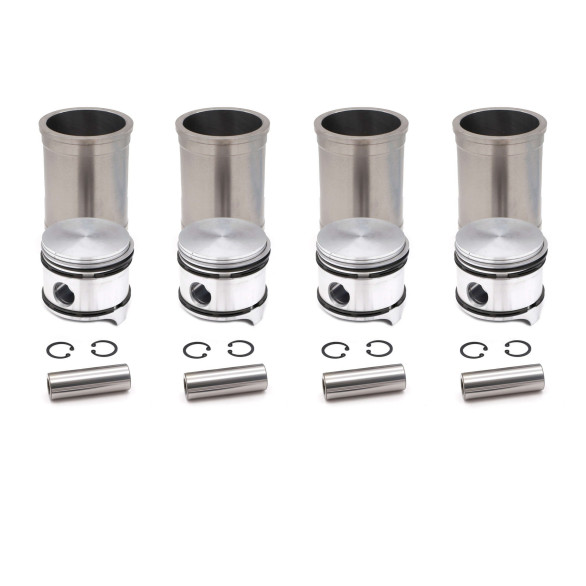

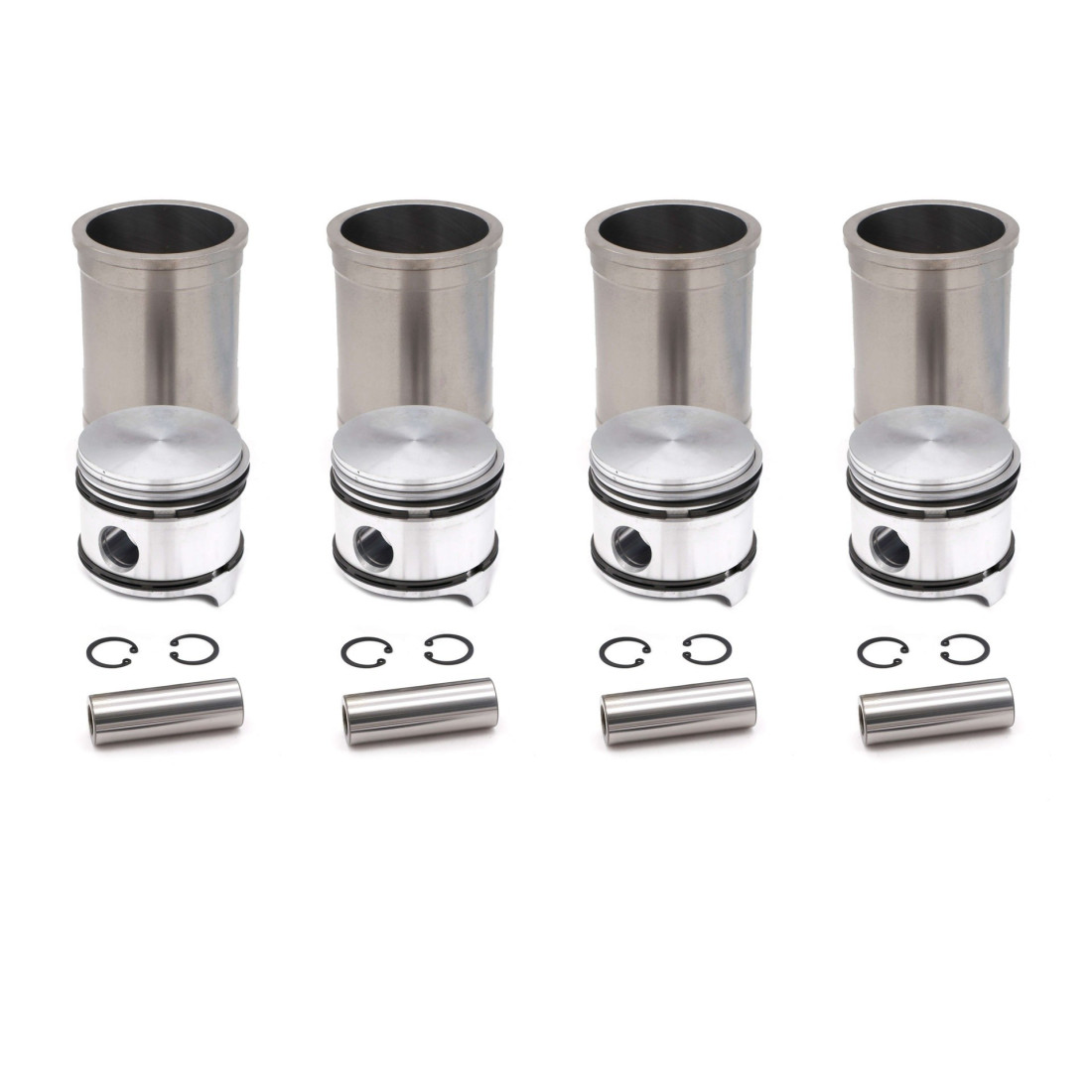

• 4 cylinder liners and pistons (piston rings 2+2+4.5+4.5mm s and pins included)

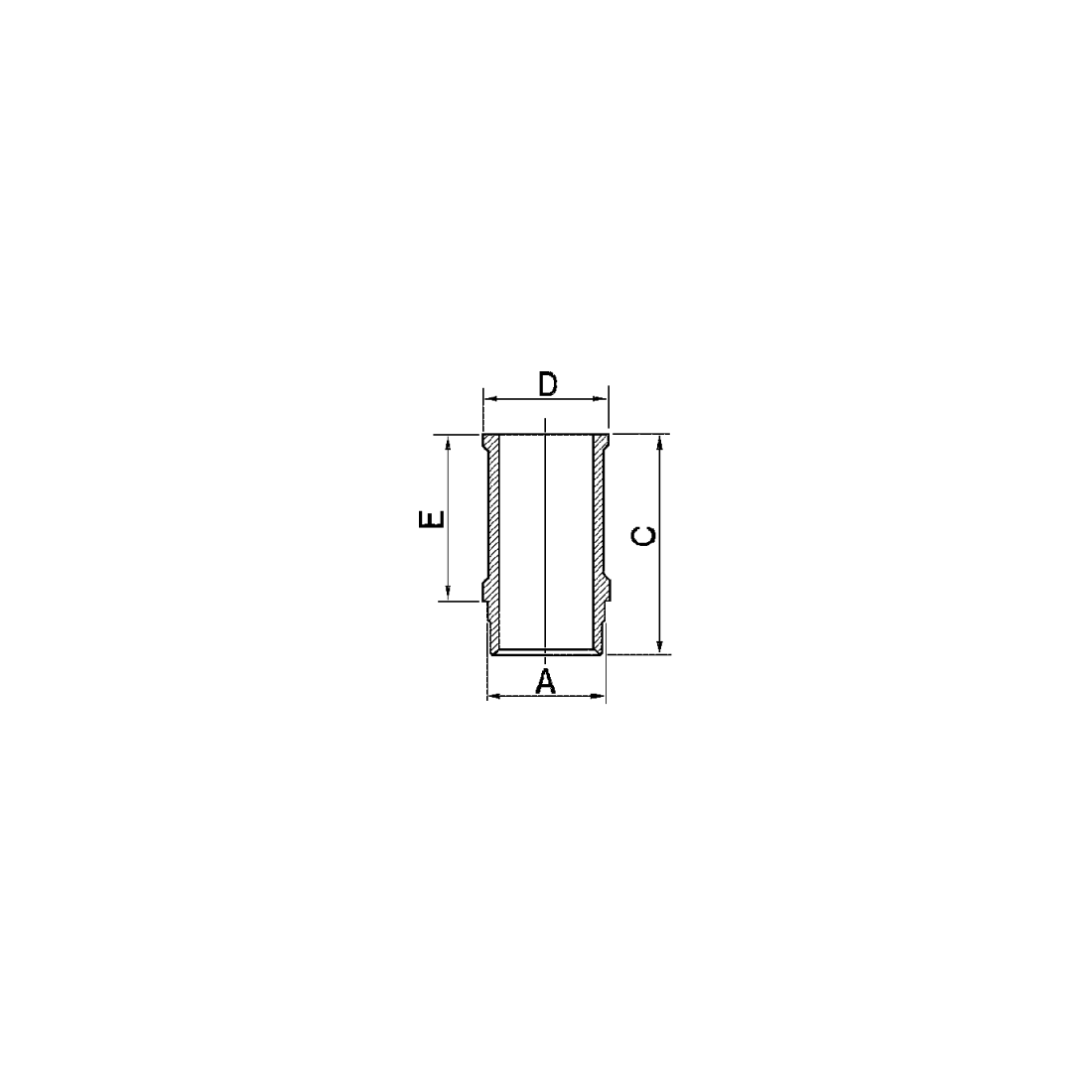

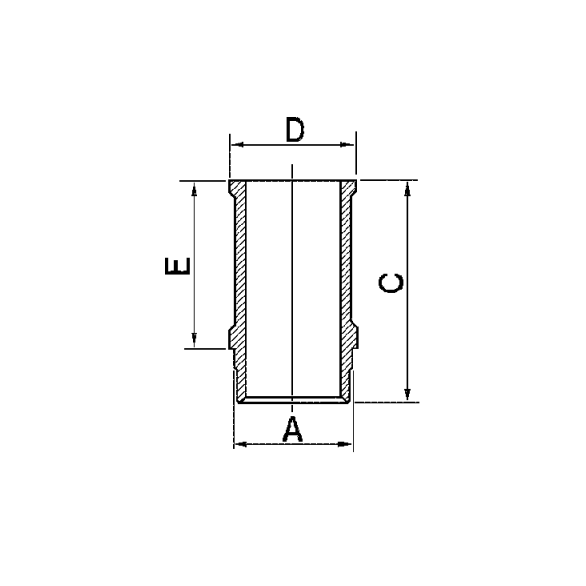

• Liner base diameter: Ø85mm (A)
• Total liner height: 140 mm (C)
• Liner bearing diameter: Ø95.80mm (D)
• Liner height (from the base): 114 mm (E)
• Axle: Ø22 x 67mm included
• Clips included
• Total piston height: 70.50mm
• Piston shaft height <-> top of piston: 41.50mm
• Installation: The arrow must be aligned with the direction of engine rotation
• Displacement: 1468 cc

Compatible with:

• Peugeot 403 8cv
• Peugeot 404 U6 Commercial 8cv
• Peugeot J7 B 1,400 kg
• Peugeot D4A
