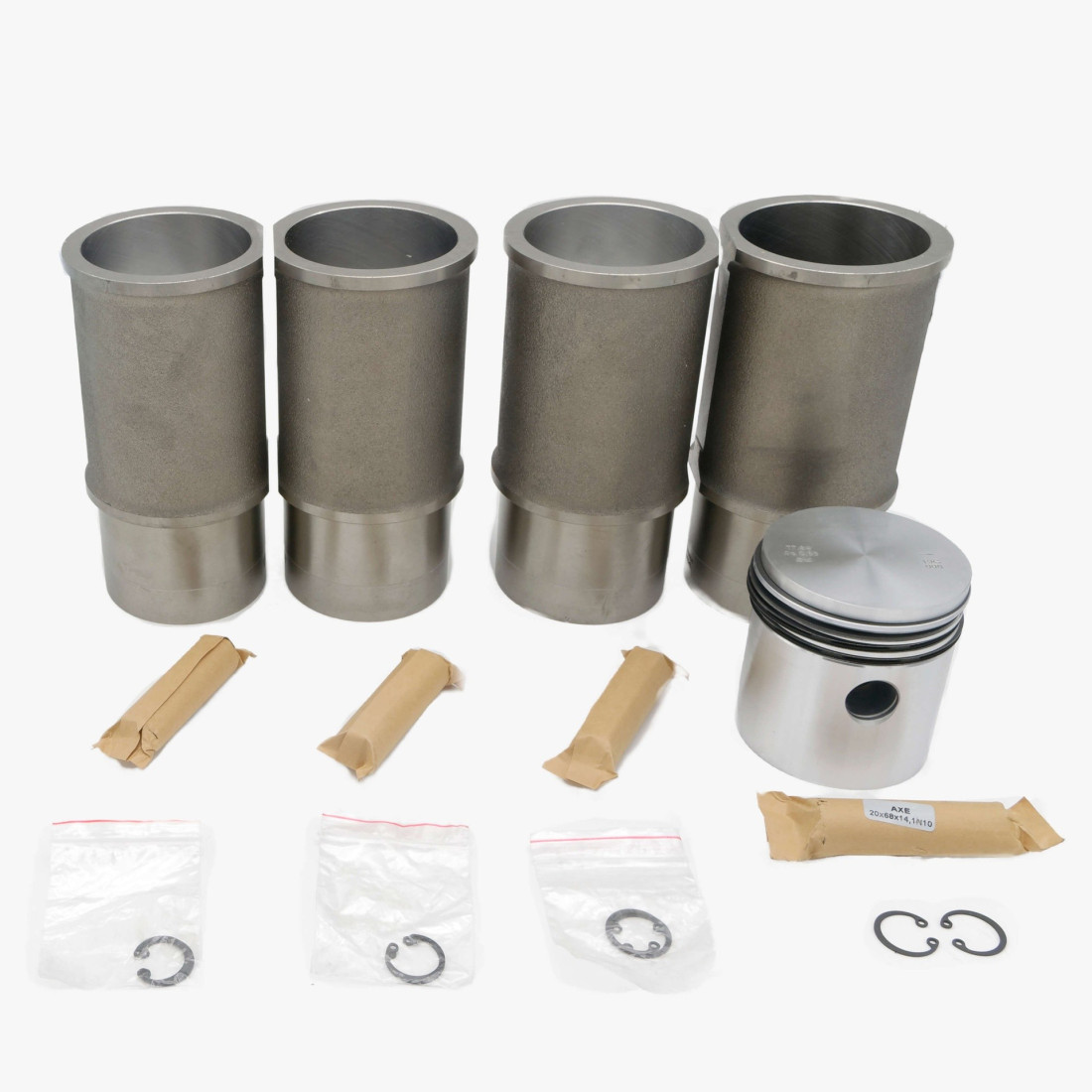

Liner and piston assembly (Flat) ⌀78mm Citroën Traction 11hp, HY, DS19, ID19

Specifications:

• Bore: Ø78 mm
• Engine: 3-bearing
• Displacement: 1911 cc
• 4 cylinder liners and flat pistons (piston rings : 2.5+4.5+4.5mm, and pins included)

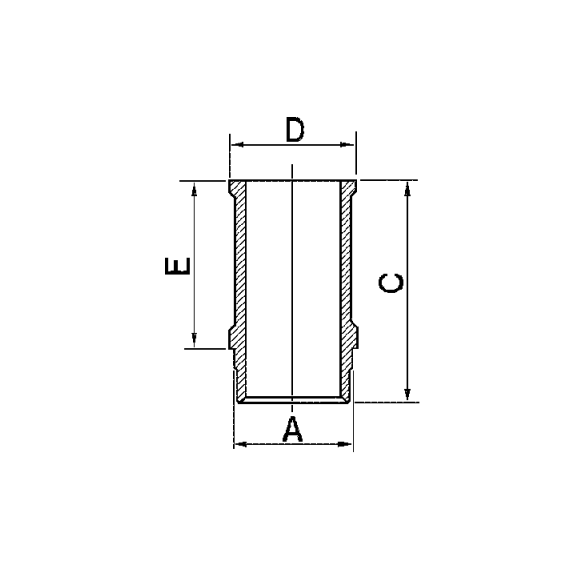

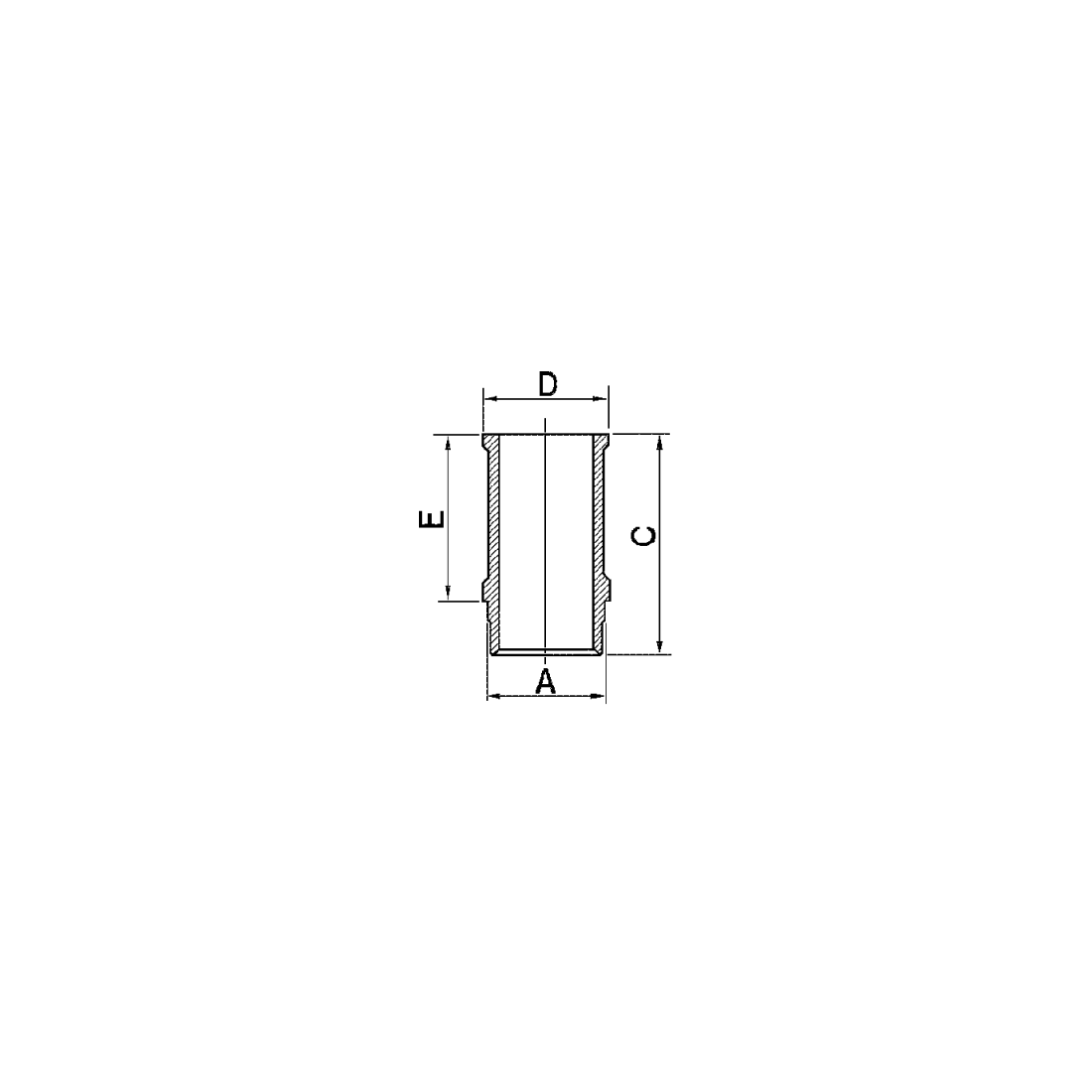

• Liner base diameter: Ø84 mm (A)
• Total liner height: 185 mm (C)
• Liner bearing diameter: Ø96 mm (D)
• Liner height (from base): 125.10mm (E)
• Piston pin: Ø20 x 68 mm
• Total piston height: 90 mm
• Height from piston pin to top of piston: 45 mm

Compatible with:

• Citroën H Type 78
• Citroën HY
• Citroën HY Type 78
• Citroën HW Type 1600
• Citroën HZ Type 1000
• Citroën HZ
• Citroën DS 19 from 1957 to 1961
• Citroën ID 19 from 1957 to 1961
• Citroën Traction 11D (11CV)
