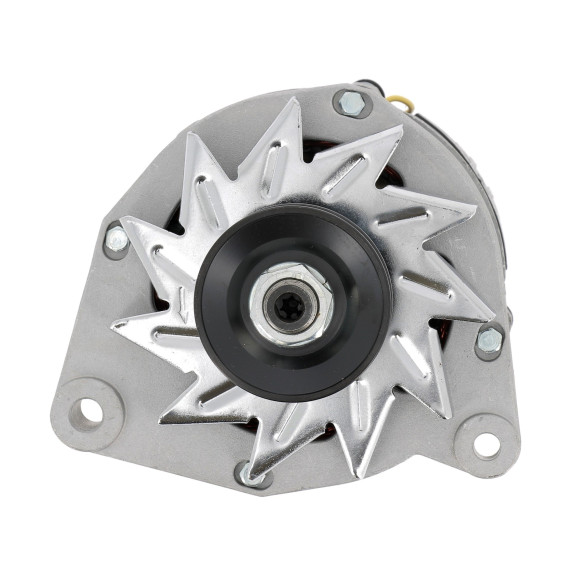

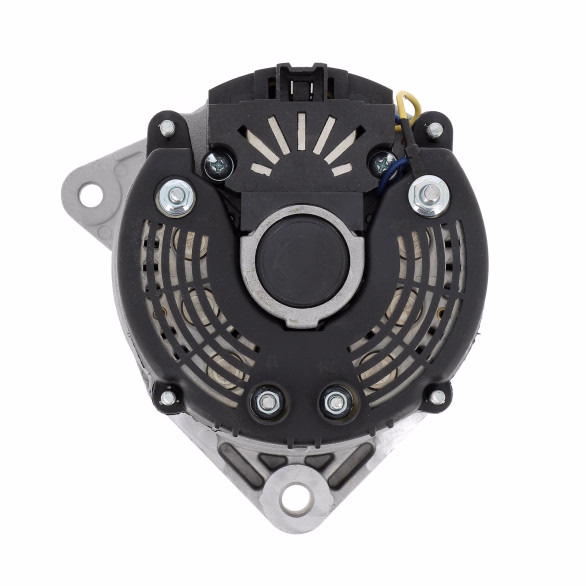

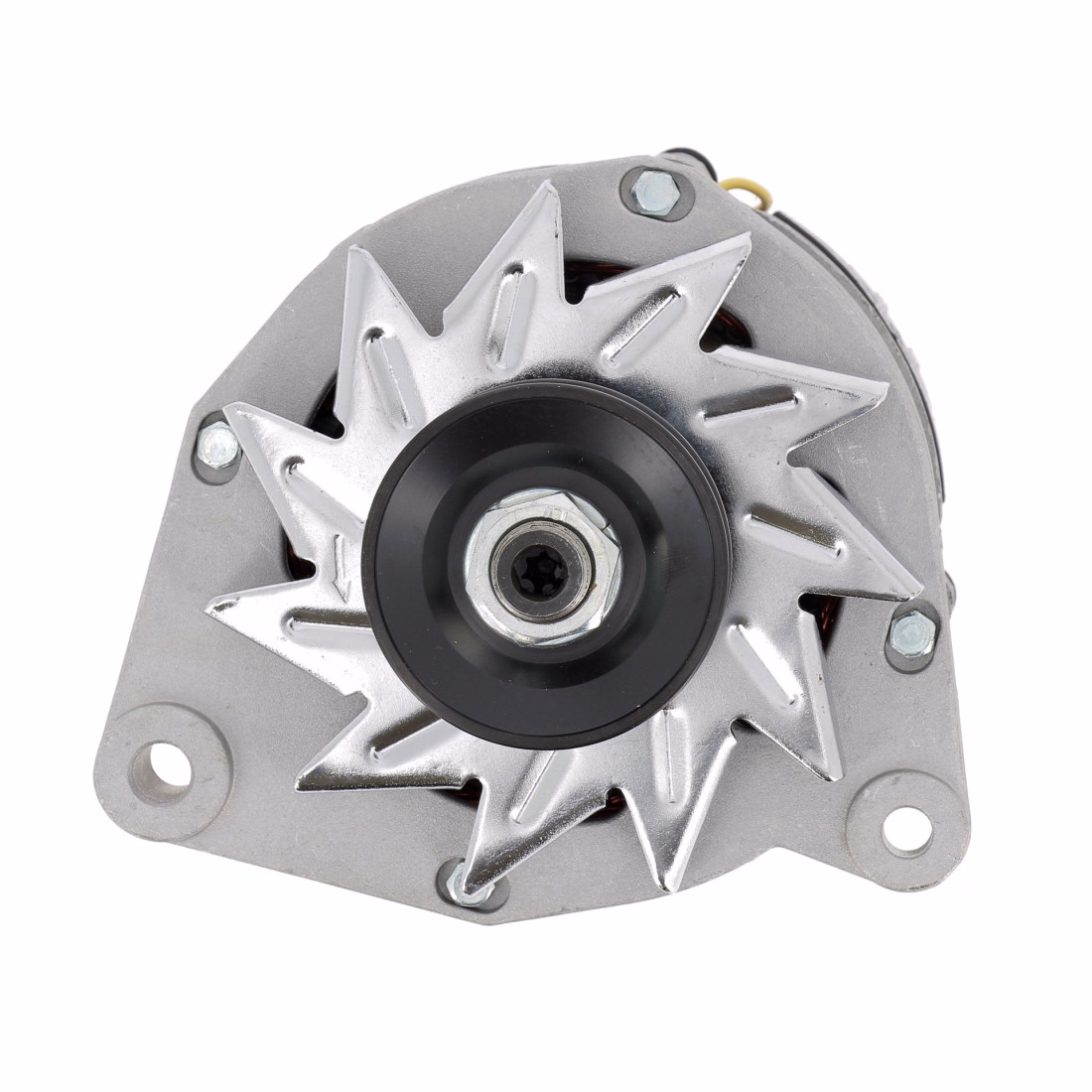

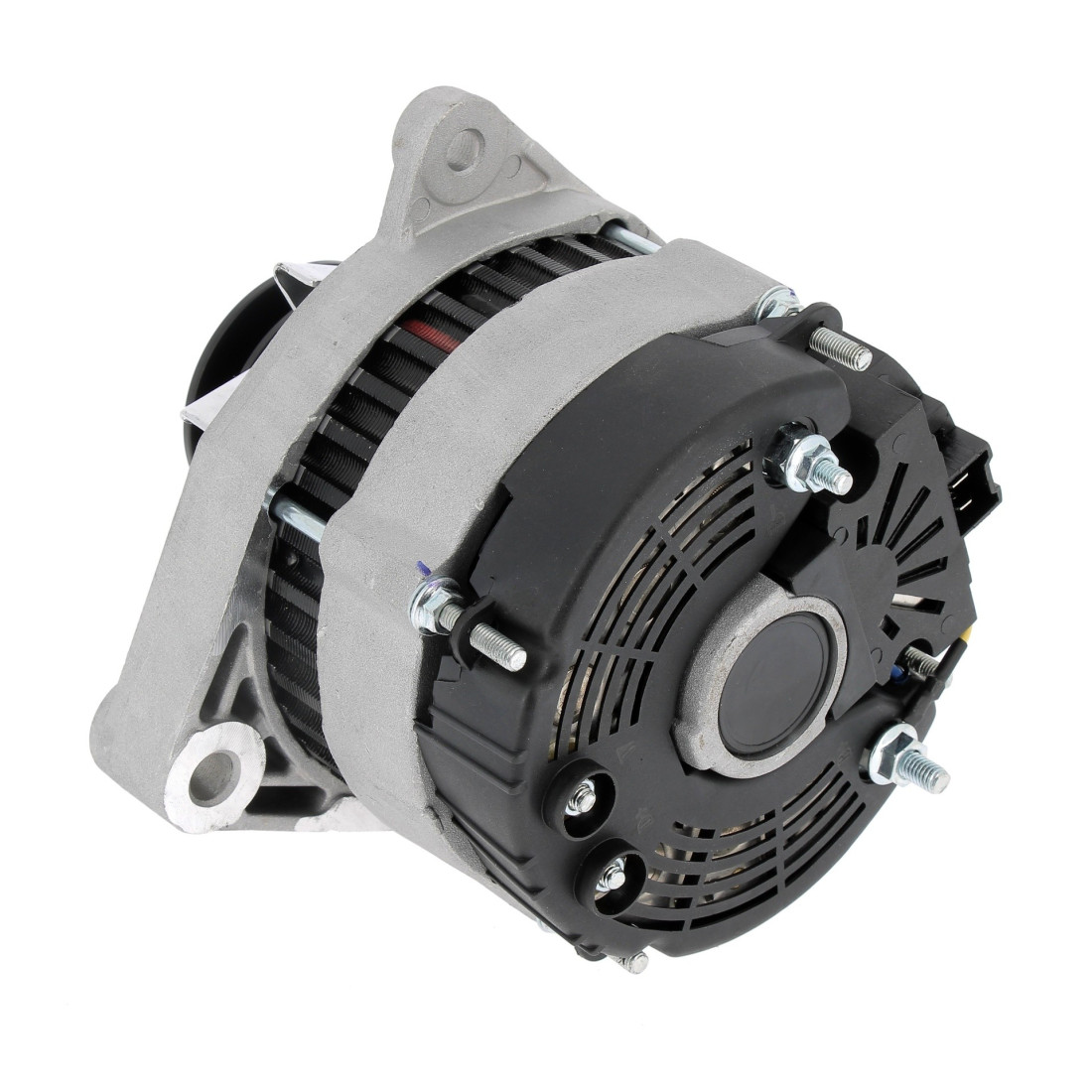

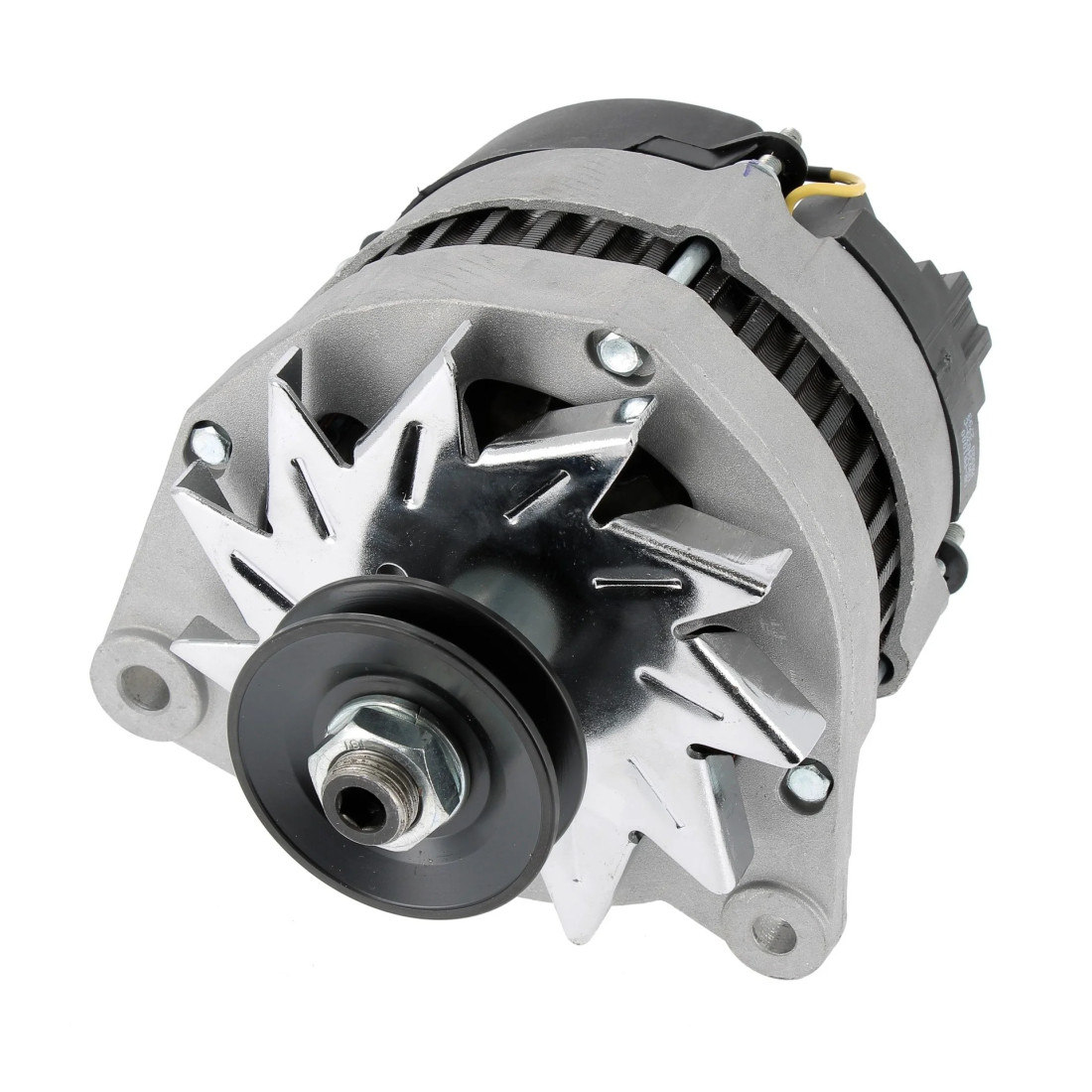

12v (50A) alternator with integrated regulator for Renault R5 (Cléon) from 1972 to 1985

Features :

• Integrated regulator (double plug connector)
• Voltage: 12V
• Alternator charging current: 50A
• Pulley: Ø61mm
• Number of grooves: 1
• Mounting angle: 70
• Number of mounting holes: 2
• Direction of rotation: counter-clockwise rotation
• Connection type: M6 B+ | M5 B-

Compatible :

• Renault R5 1.0 (R1222, R1392) Engine: 689 710 from 01/1972 to 12/1985
• Renault R5 1.1 (R1227, R1397) Engines: 688 713, C1E 726 from 09/1980 to 12/1985
• Renault R5 1.3 (R1225) Engine: 810 726 from 09/1976 to 09/1979
• Renault R5 1.3 (R1225, R1395) Engine: 810 719 from 06/1979 to 09/1984
• Renault R5 1.3 Automatic (R1225, R1395) Engine: 810 729 from 06/1979 to 09/1984
• Renault R5 1.3 (R1224, R1394) Engine: 810 725 from 09/1975 to 09/1984
• Renault R5 1.4 Automatic (R1229, R1399) Engine: 847 712 from 06/1982 to 09/1984
• Renault R5 1.4 (R1229, R1399) Engines: 847 725, C2J 713 from 01/1982 to 12/1985
• Renault R5 1.4 Alpine A5 (R1223) Engine: 840 725 from 09/1977 to 09/1981
• Renault R5 1.4 Alpine Turbo (122B) Engines: 840 726, C6J 750 from 10/1981 to 01/1985
• Renault R5 1.4 Engine: C6J 750 from 06/1984 to 01/1985
• Renault R5 Company 1.0 (R2382) Engine: 689 710 from 01/1972 to 12/1985
• Renault R5 Company 1.1 Engines: 688 713, C1E 726, C1E 750, C1E 752, C1E 754 from 09/1980 to 12/1985

Ref OE/Equivalent :

• RENAULT 6001000269
• RENAULT 6001003305
• RENAULT 7700578469
• RENAULT 7700670257
• RENAULT 7701349063
• RENAULT 7701499204
• RENAULT 7701499214
• RENAULT 7701499447
